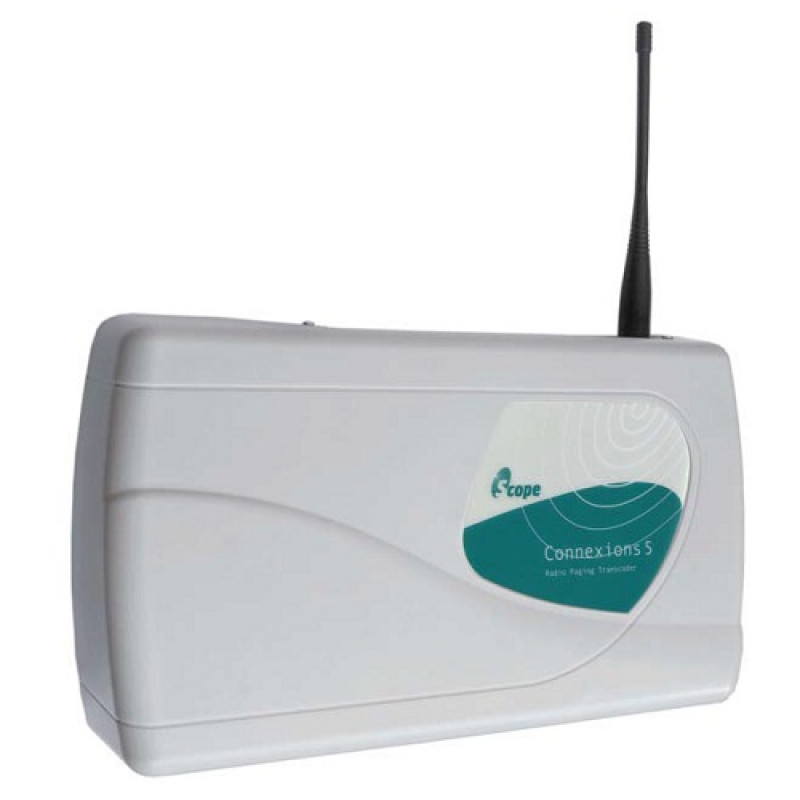

CX5, Connexions 5 230V 2W Transmitter 2 x Serial Ports

CX5, High power mains powered Connexions transmitter, two serial inputs. 2W output

The Scope Connexions 5 is a POCSAG data display radio paging system which can be used to transmit both text and numeric messages direct to pocket pagers carried by individuals or entire groups. Information is input using either or both of the two RS232 serial ports. There are also models available which provide an additional RS232 port, a USB port, an RS485 port and an ethernet port. Contact your Scope dealer for further details. Up to 9,999 pagers can be supported on any one system.

The transmitter is designed to work at UHF frequencies which give an incredibly high degree of reliability in terms of the signalling success within a commercial environment, whilst using very small and unobtrusive aerials. It uses the same international standard digital signalling system (POCSAG) deployed by most wide area paging companies. This is accepted to be amongst the most sophisticated and reliable in the world.

System Specification:

• Mains Input: 100-240V ac 0.8A 50/60 Hz
• System Operating Voltage: 13.8V dc
• System Power Consumption: less than 50mA standby, up to 2.4A (transmit)

Transmitter:

• Power output: 0.1W to 5W max
• Frequency Range: 446-464 MHz
• Channel Spacing: 12.5 KHz
• Adjacent Channel: better than 200nW @ 4.5 KHz deviation
• TX Baud Rate: 512 or 1200
• RF Standards applied: EN 300 224-1 01/2001
