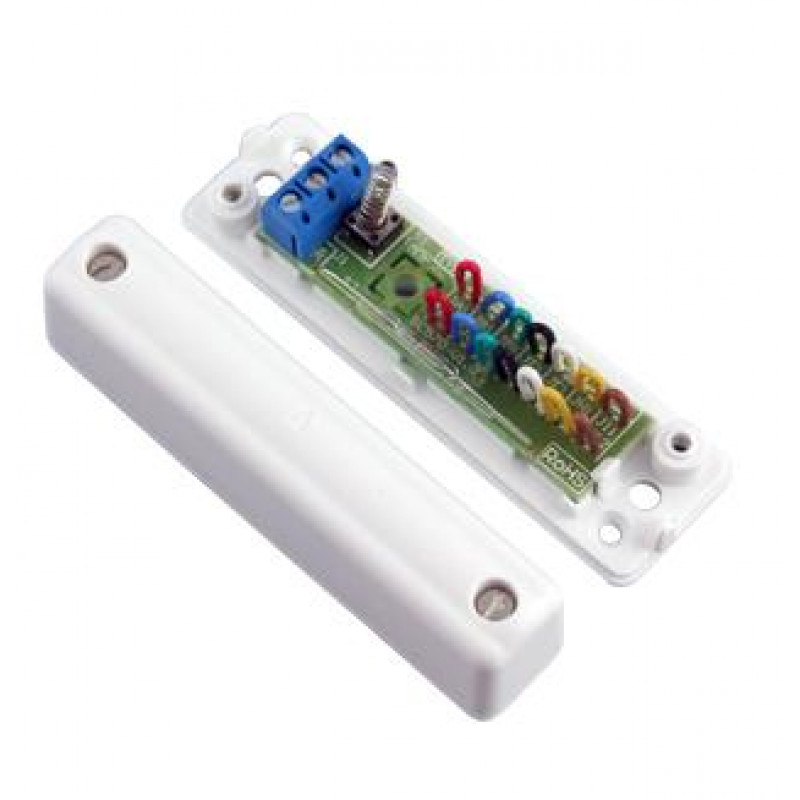

CQR, SC570/WH/MD/MULTI/G3, 3T Surface Cnt Mag Det and Sel Res G3

CQR, SC570/WH/MD/MULTI/G3, 3 Term Surface Cnt Mag Det and Sel Res G3 White

The SC570/WH/MD/MULTI/G3 Grade 3 contacts are suitable for a wide range of applications and can be used in Ungraded, Grade 1, Grade 2 and Grade 3 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are also an option. They should also detect or be immune to rogue magnets.A range of contacts in plastic and aluminium which can be surface mounted and which will suit most domestic and commercial installations.

Key Features:

• 6 Terminals
• Microswitch and walltamper
• Selectable end of line resistor
• Can use own resistors
• Also Available in Brown
• Magnetic Detection

Specifications:

• Connections: 3 Terminals
• Reed Switches: 2
• Pull-in Gap: 12mm (Y) 10mm (Z)
• Material: High Impact Polystyrene
• Contact Size mm: 85 x 25 x 21
• Magnet Size mm: 85 x 18 x 21
• Contact Form: SPST form A
• Voltage Range: 12v DC
• Switching Current: 500mA @ 12Vdc
• Contact Material: Rhodium
• Temperature Range: -15° C to +40° C
• Tamper: Cover & optional RFMS
• Colours: White
• Magnetic Interference Detection: Yes
• Standards: EN50131-2-6 Grade 3
• Environmental Class: II.
