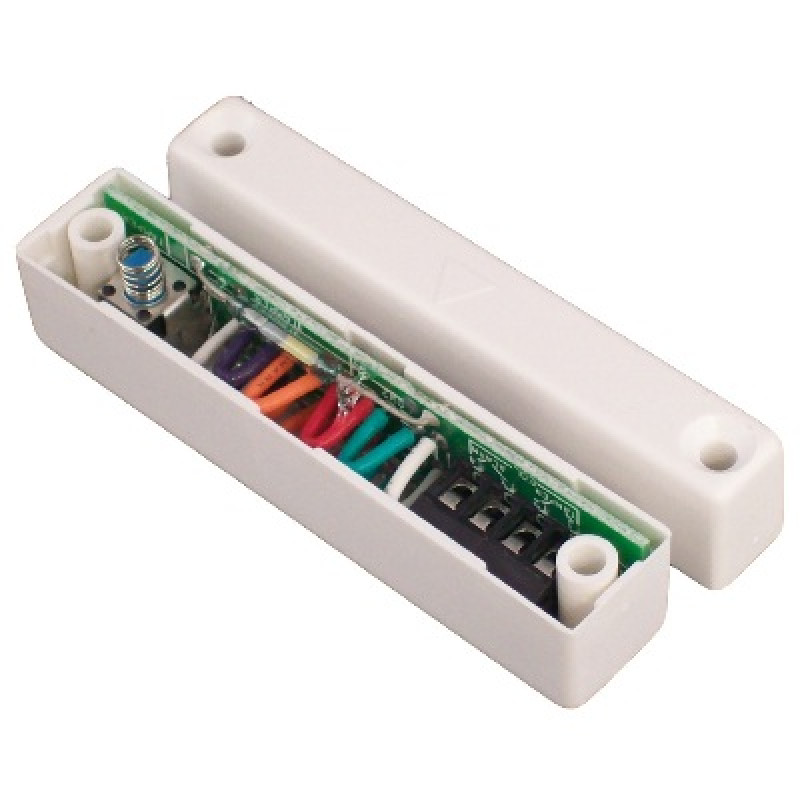

CQR, SC517/WH/MULTI/G3/EN, Grade 3 Surface Door Contact (White)
- Brand:CQR
- Product Code:SC517/WH/MULTI/G3/EN
- Availability:Please Call or Email Us to Check Availability
CQR, SC517/WH/MULTI/G3/EN, Grade 3 Surface Door Contact (White)
The SC517/WH/MULTI/G3 Grade 3 contacts are suitable for a wide range of applications and can be used in Ungraded, Grade 1, Grade 2 and Grade 3 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are also an option. They should also detect or be immune to rogue magnets.A range of contacts in plastic and aluminium which can be surface mounted and which will suit most domestic and commercial installations.
Key Features:
- 4 Terminals
- Microswitch tamper
- Selectable end of line resistor
- Also Available in Brown
- Can be fitted in normal double pole
- Can be used on double door configuration
- Environmental Class II
- Size: 65 x 13.5 x 13mm
Specifications:
- Connections: 4 Terminals
- Reed Switches: 1
- Pull-in Gap: 9mm (Y) 15mm (Z)
- Material: High Impact Polystyrene
- Contact Size mm: 33 x 22 x 32
- Magnet Size mm: 33 x 22 x 13
- Contact Form: SPST form A
- Voltage Range: 12v DC
- Switching Current: 500mA @ 12Vdc
- Contact Material: Rhodium
- Temperature Range: -15° C to +40° C
- Tamper: Cover & RFMS
- Colours: White
- Magnetic Immunity: N/A
- Standards: EN50131-2-6 Grade 2
- Environmental Class: II.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
