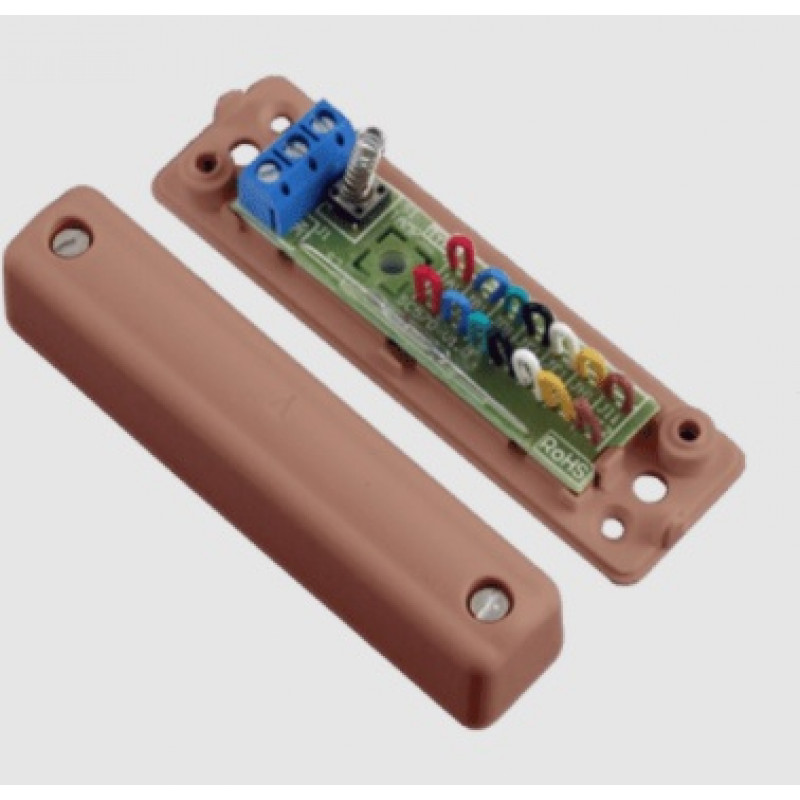

SC570/BR/MULTI, 3 Term Surface Contact BR Sel Res
- Brand:CQR
- Product Code:SC570/BR/MULTI
- Availability:Please Call or Email Us to Check Availability
SC570/BR/MULTI, 3 Term Surface Contact BR Sel Res
The SC570/BR/MULTI Grade 2 Surface Contact (Brown) with Selectable EOL Resistor are suitable for Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.
- 3 Terminals
- Microswitch wall tamper
- Selectable end of line resistor
- Available in white or brown
Specifications:
- Connections: 3 Terminals
- Reed Switches: 1
- Pull-in Gap: 36mm (X) 27mm (Y)
- Material: High Impact Polystyrene
- Contact Size mm: 85 x 25 x 21
- Magnet Size mm: 85 x 18 x 21
- Contact Form: SPST form A
- Voltage Range: 12v DC
- Switching Current: 500mA @ 12Vdc
- Contact Material: Rhodium
- Temperature Range: -15° C to +40° C
- Tamper: Cover and optional RFMS
- Colours: Brown
- Magnetic Interference Detection: N/A
- Standards: EN50131-2-6 Grade 2
- Environmental Class: II.
For more details, please refer with our attached datasheet.
