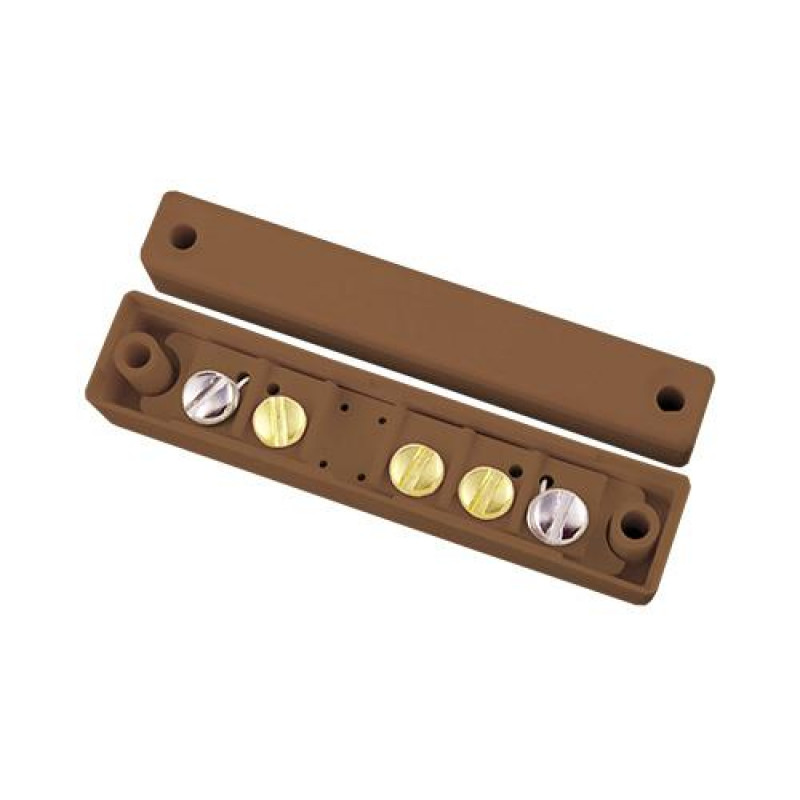

CQR, SC517/BR/G2, SC517 Brown S/Contact With Microswitch G 2
- Brand:CQR
- Product Code:SC517/BR/G2
- Availability:Please Call or Email Us to Check Availability
CQR, SC517/BR/G2, SC517 Brown S/Contact With Microswitch G 2
The SC517/BR/G2 are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.A range of contacts in plastic which can be surface mounted and which will suit most domestic and commercial installations.
Specifications:
- Connections: 5
- Reed Switches: 1
- Pull-in Gap: 20mm
- Material: Polystyrene
- Size mm: 65 Dia. x 13.5 x 13
- Contact Form: SPST form A
- Voltage Range: 1-50vDC
- Switching Current: 500mA
- Contact Material: Rhodium
- Colours: Brown
- Tamper: Microswitch Tamper
- Standards: EN50131-2-6 Grade 2
- Environmental Class: II.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
