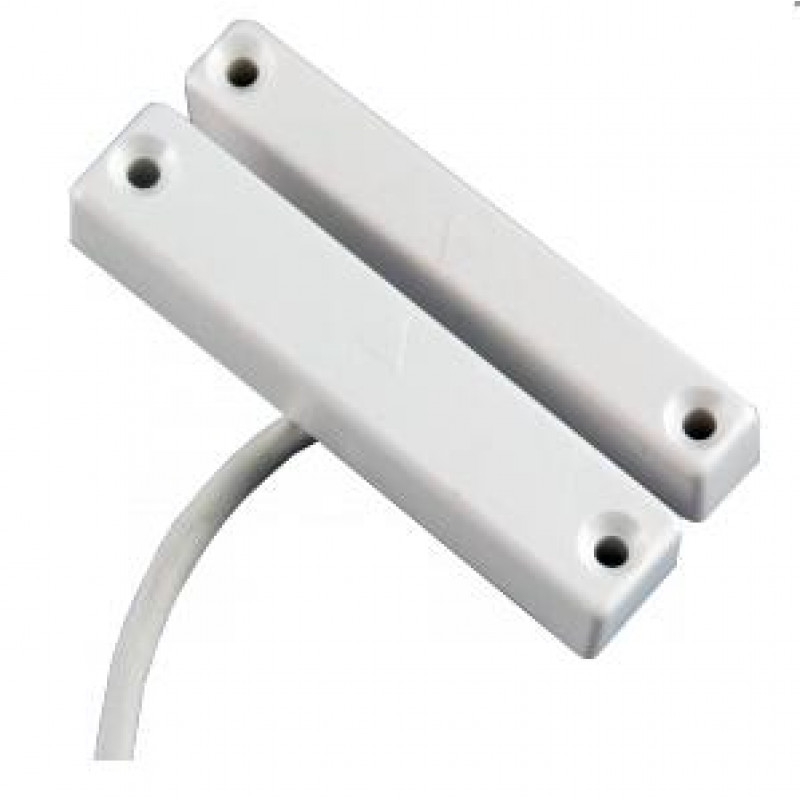

CQR, SC513/WH/4C, 1 Reed 4 Core Surface Contact White G 2

CQR, SC513/WH/4C, 1 Reed 4 Core Surface Contact White G 2

The SC513/WH/4C Grade2 Surface Door Contact are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.A range of contacts in plastic and aluminium which can be surface mounted and which will suit most domestic and commercial installations.

Key Features:

• Pre-wired
• Operating Gap - 20mm
• Pre-resistored

Specifications:

• Connections: 1m 4Core
• Reed Switches: 1
• Pull-in Gap: 20mm
• Material: Polystyrene
• Size mm: 65 x 13.5 x 13
• Contact Form: SPST form A
• Voltage Range: 1-50v DC
• Switching Current: 500mA
• Contact Material: Rhodium
• Colours: White.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
