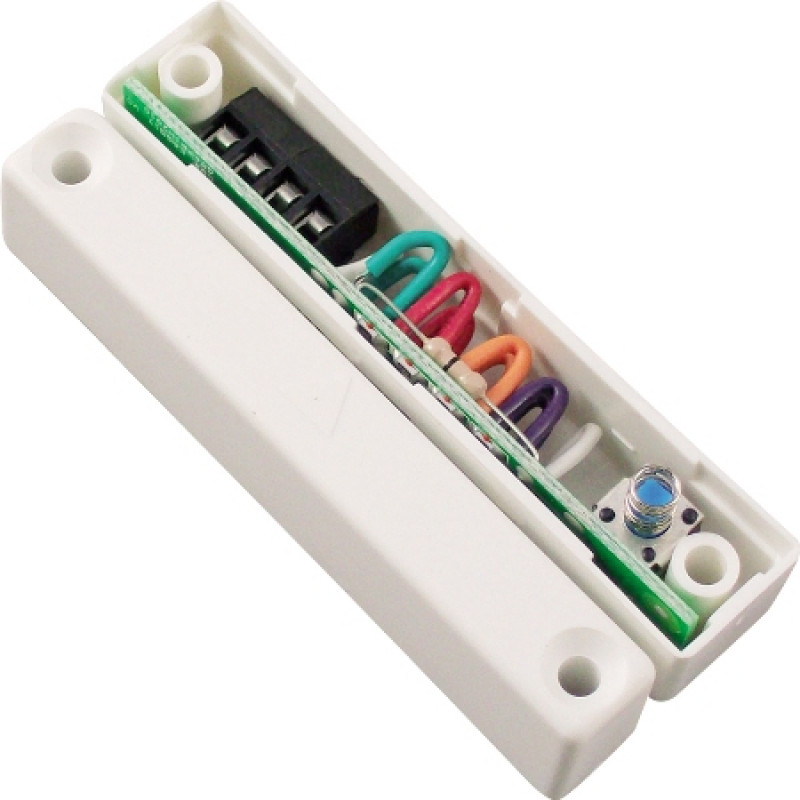

CQR, SC517/WH/MULTI/G2/EN, Surface Door Contact, White (Grade 2)
- Brand:CQR
- Product Code:SC517/WH/MULTI/G2/EN
- Availability:Please Call or Email Us to Check Availability
CQR, SC517/WH/MULTI/G2/EN, Surface Door Contact, White (Grade 2)
The SC517/WH/MULTI/G2 Grade 2 Surface Door Contact with Selectable EOL Resistor are suitable for use in Grade 2 systems. TheSC517/WH/MULTI/G2/EN se contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.A range of contacts in plastic and aluminium which can be surface mounted and which will suit most domestic and commercial installations.
Key Features:
- 4 Terminals
- Microswitch tamper
- Selectable end of line resistor
- Can use own resistors
- Also Available in Brown
- Can be fitted in double pole
- Can be used on double door configuration
Specifications:
- Connections: 4 Terminals
- Reed Switches: 1
- Pull-in Gap: 25mm (X) 15mm (Y)
- Material: High Impact Polystyrene
- Contact Size mm: 65 x 13 x 13
- Magnet Size mm: 65 x 11 x 13
- Contact Form: SPST form A
- Voltage Range: 12v DC
- Switching Current: 500mA @ 12Vdc
- Contact Material: Rhodium
- Temperature Range: -15° C to +40° C
- Tamper: Microswitch
- Colours: White
- Magnetic Interference Detection: N/A
- Standards: EN50131-2-6 Grade 2
- Environmental Class: II.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
