CQR, RS007/G3/E, RS007 Contact Type E G3 6K8 4K7

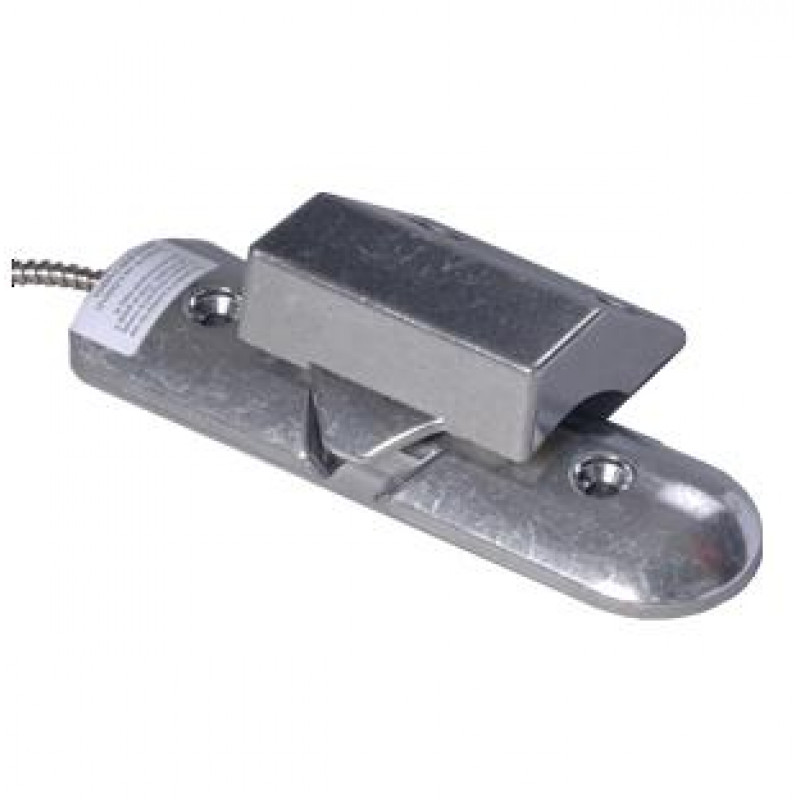

CQR, RS007/G3/E, RS007 Heavy Duty Aluminium Roller Shutter Contact Type E G3 6K8 4K7

The RS007/G3/E Grade 3 contacts are suitable for a wide range of applications and can be used in Ungraded, Grade 1, Grade 2 and Grade 3 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are also an option. They should also detect or be immune to rogue magnets.

Key Features:

• High Quality Alloy Finish
• Other resistor value available
• Optional floor tamper
• Locating Mechanism to aid alignment
• 45cm & 1m Armoured cable lengths
• EN50131-2-6 Grade 3
• Environmental Class: III

Specifications:

• Connections: 8 Core x 7/0.2 Copper Cable
• Armoured Cable Legnth: 450mm
• Reed Switches: Multiple
• Pull-in Gap: 23mm (Y) 28mm (Z)
• Material: Aluminimum
• Contact Size mm: 175 x 50 x 14
• Magnet Size mm: 83 x 86 x 32
• Contact Form: SPST form A
• Voltage Range: 12v DC
• Switching Current: 250mA @ 12Vdc
• Contact Material: Rhodium & Ruthenium
• Temperature Range: -15° C to +40° C
• Colours: Aluminium
• Magnetic Interference Detection: Yes
• Resistor Type: E
• Switch: 6K8 Ohms
• Tamper: 4K7 Ohms.
