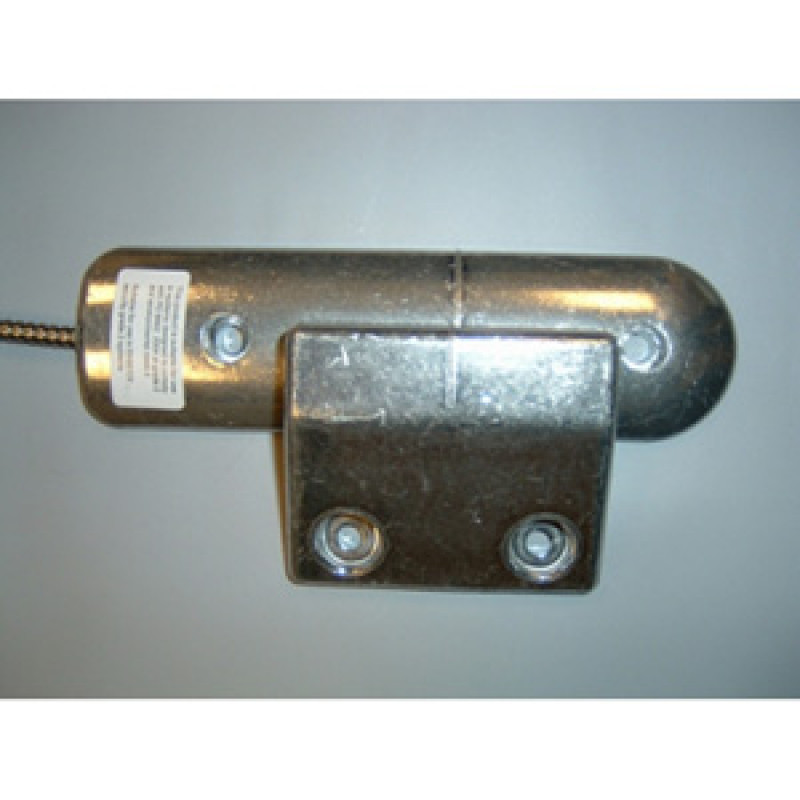

CQR, RS002/ALI/G2/A, RS 1 Reed Contact Type A 1K SW 1K TAMP
- Brand:CQR
- Product Code:RS002/ALI/G2/A
- Availability:Please Call or Email Us to Check Availability
CQR, RS002/ALI/G2/A, RS 1 Reed Contact Type A 1K SW 1K TAMP
The RS002/ALI/G2/A are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.
Key Features:
- Heavy Duty Roller Shutter
- Operating Gap: 50 mm
- Double Pole
- Size: 175 x 50 x 15 mm
- High Quality Alloy Finish
- 1 & 2 Reed Versions Available
- 45cm & 1m Armoured Cable Lengths
- Also Available as Pre-resistored
Specifications:
- Connections: 8 Core x 7/0.2 Copper Cable
- Armoured Cable Legnth: 450mm
- Reed Switches: 1
- Pull-in Gap: 60mm (X) 30mm (Y)
- Material: Aluminimum
- Contact Size mm: 175 x 50 x 12
- Magnet Size mm: 85 x 71 x 30
- Contact Form: SPST form A
- Voltage Range: 12v DC
- Switching Current: 500mA @ 12Vdc
- Contact Material: Rhodium
- Temperature Range: -15° C to +40° C
- Tamper: Integrity Loop
- Colours: Aluminium
- Magnetic Interference Detection: N/A
- Standards: EN50131-2-6 Grade 2
- Environmental Class: III
- Resistor Type: A
- Switch: 1K Ohms
- Tamper: 1K Ohms.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
