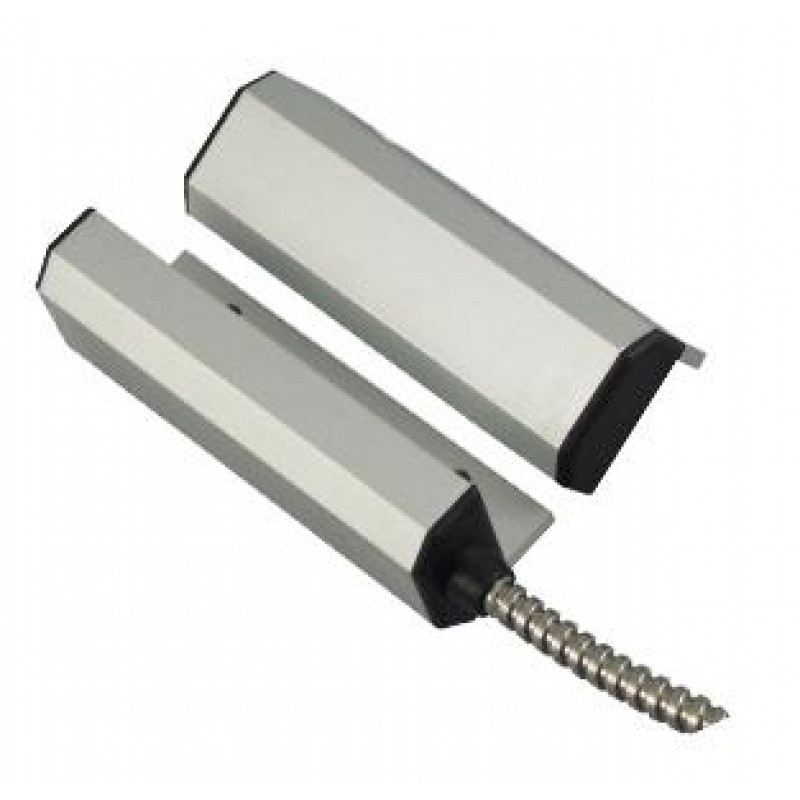

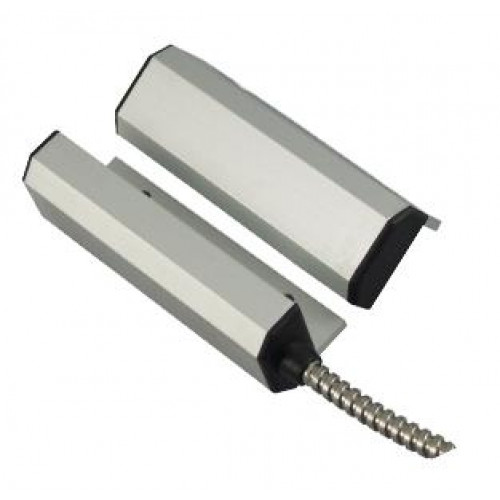

CQR, GP001/G2, Aluminium Door Contact Grade 2
- Brand:CQR
- Product Code:GP001/G2
- Availability:Please Call or Email to Checkout
CQR, GP001/G2, Aluminium Door Contact Grade 2
The GP001/G2 is Heavy Duty Aluminium Door Contact Grade 2 are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.
Key Features:
- Heavy Duty Angled Contact
- High quality alloy finish
- Other resitor value available
- 45cm Armoured cable lengths
- Size: 80 x 15 x 27mm
Specifications:
- Connections: 8 Core x 7/0.2 Copper Cable
- Armoured Cable Legnth: 570mm
- Reed Switches: 1
- Pull-in Gap: 30mm (X) 20mm (Y)
- Material: Aluminimum/ABS
- Contact Size mm: 85 x 27 x 26
- Magnet Size mm: 85 x 27 x 26
- Contact Form: SPST form A
- Voltage Range: 12v DC
- Switching Current: 500mA @ 12Vdc
- Contact Material: Rhodium
- Temperature Range: -15° C to +40° C
- Tamper: Tamper Integrity Loop
- Colours: Brushed Aluminium
- Magnetic Interference Detection: N/A
- Standards: EN50131-2-6 Grade 2
- Environmental Class: II.
