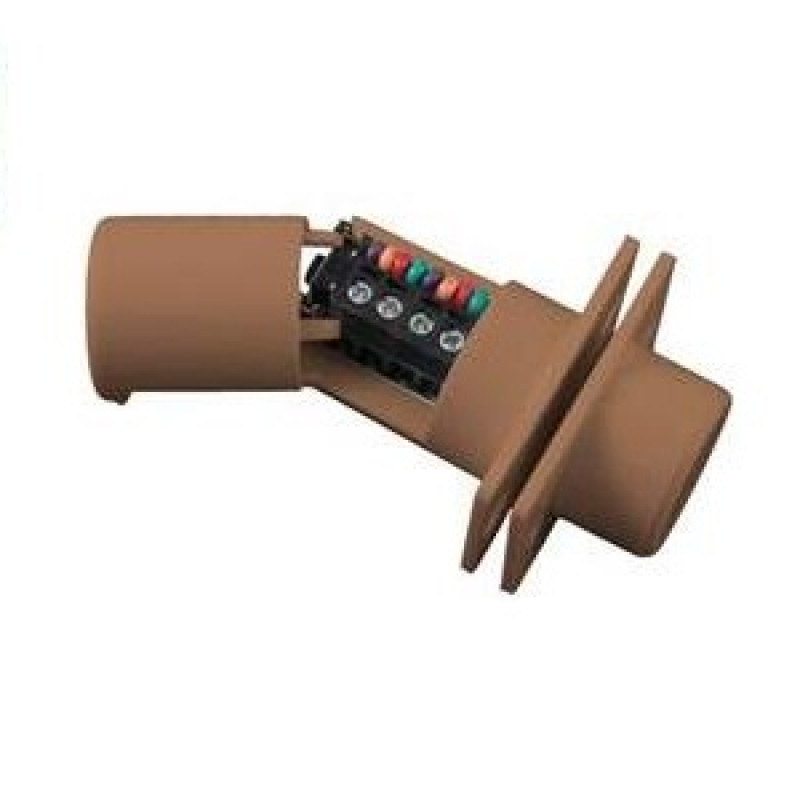

CQR, FC508/BR/MULTI/G3/EN, Flush Door Contact Brown, Multi Grade 3

CQR, FC508/BR/MULTI/G3/EN, Flush Door Contact Brown, Multi Grade 3

FC508/BR/MULTI/G3 Grade 3 contacts are suitable for a wide range of applications and can be used in Ungraded, Grade 1, Grade 2 and Grade 3 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are also an option. They should also detect or be immune to rogue magnets.

Key Features:

• Screw terminal block, no junction box required
• Microswitch tamper
• Selectable end of line resistor
• Can use own resistors
• Also Available in White
• Can be fitted in double pole
• Can be used on double door configuration
• Magnetic Immunity

Specifications:

• Connections: 4 Terminals
• Reed Switches: 0
• Pull-in Gap: 3mm (Y) 4mm (Z)
• Material: High Impact Polystyrene
• Contact Size mm: 33 x 22 x 32
• Magnet Size mm: 33 x 22 x 32
• Contact Form: SPST form A
• Voltage Range: 100v DC
• Switching Current: 500mA @ 12Vdc
• Contact Material: Silver plated copper
• Temperature Range: -15° C to +40° C
• Tamper: Cover & RFMS
• Colours: Brown
• Magnetic Immunity: Yes
• Standards: EN50131-2-6 Grade 3
• Environmental Class: II.

For more details, please refer with our attached datasheet.
