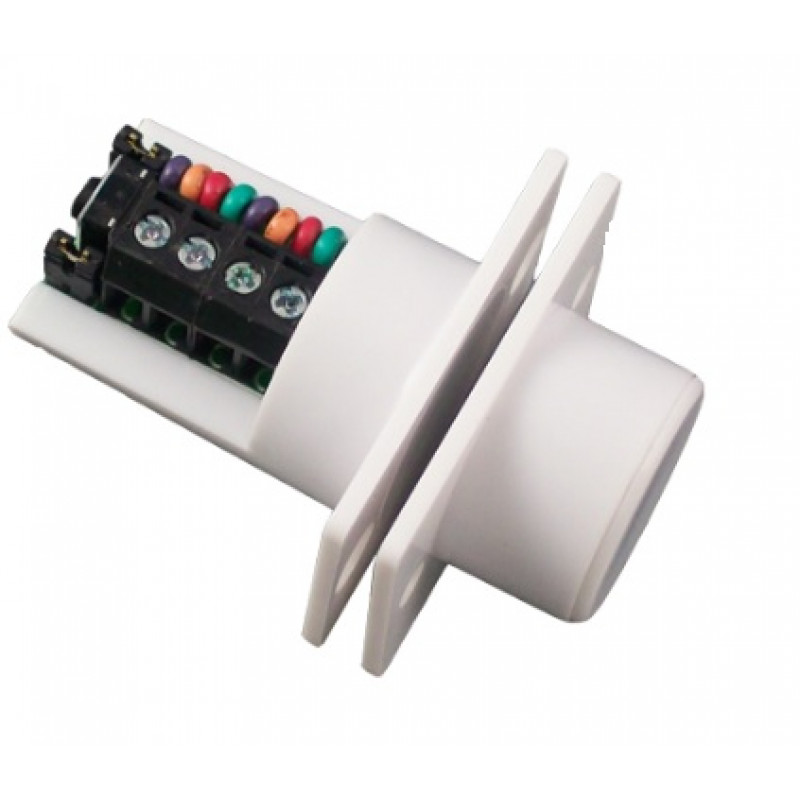

CQR, FC508/WH/MULTI/G2/EN, Flush Door Contact White, Multi Grade 2

CQR, FC508/WH/MULTI/G2/EN, Flush Door Contact White, Multi Grade 2

The FC508/WH/MULTI/G2 are suitable for use Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.Magnetic contacts which can be flush fitted for maximum discretion. The range includes plastic and metal fronted types, some of which are prewired for easy installation.

Key Features:

• Screw terminal block, no junction box required
• Microswitch tamper
• Selectable end of line resistor
• Can use own resistors
• Also Available in Brown
• Can be fitted in double pole
• Can be used on double door configuration

Specifications:

• Connections: 4 Terminals
• Reed Switches: 2
• Pull-in Gap: 19mm (Y) 15mm (Z)
• Material: High Impact Polystyrene
• Contact Size mm: 33 x 22 x 32
• Magnet Size mm: 33 x 22 x 13
• Contact Form: SPST form A
• Voltage Range: 12v DC
• Switching Current: 500mA @ 12Vdc
• Contact Material: Rhodium
• Temperature Range: -15° C to +40° C
• Colours: White
• Tamper: Cover and RFMS
• Magnetic Immunity: N/A
• Standards: EN50131-2-6 Grade 2
• Environmental Class: II

 For more details, please refer with our attached datasheet.
