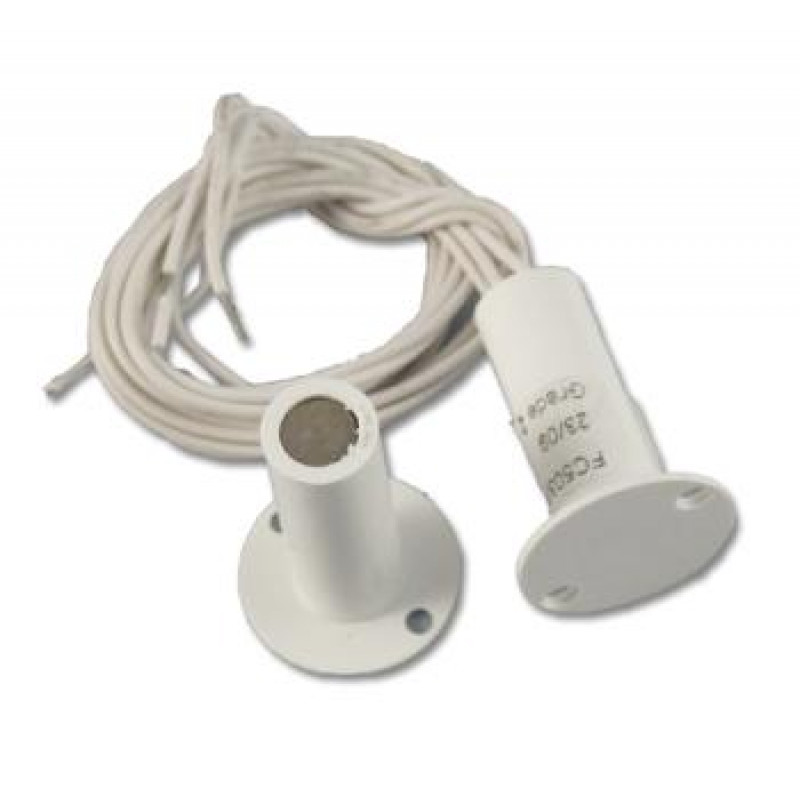

CQR, FC503/WH, 3/8 Flush Contact 1 RD 4 Wire White
The FC503/WH Grade 2 Pre - Resistored Flush Door Contact are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.Magnetic contacts which can be flush fitted for maximum discretion. The range includes plastic and metal fronted types, some of which are prewired for easy installation.
Key Features:
- 4 Core Pre Wired
- Operating Gap - 15mm
- Double Pole or Pre-resistored.
Specifications:
- Connections: 4 wire
- Reed Switches: 1
- Pull-in Gap: 15mm
- Material: Polystyrene
- Size mm: 9.5 Dia x 25
- Contact Form: SPST form A
- Voltage Range: 1-50v DC
- Switching Current: 500mA
- Contact Material: Rhodium
- Colours: White.
