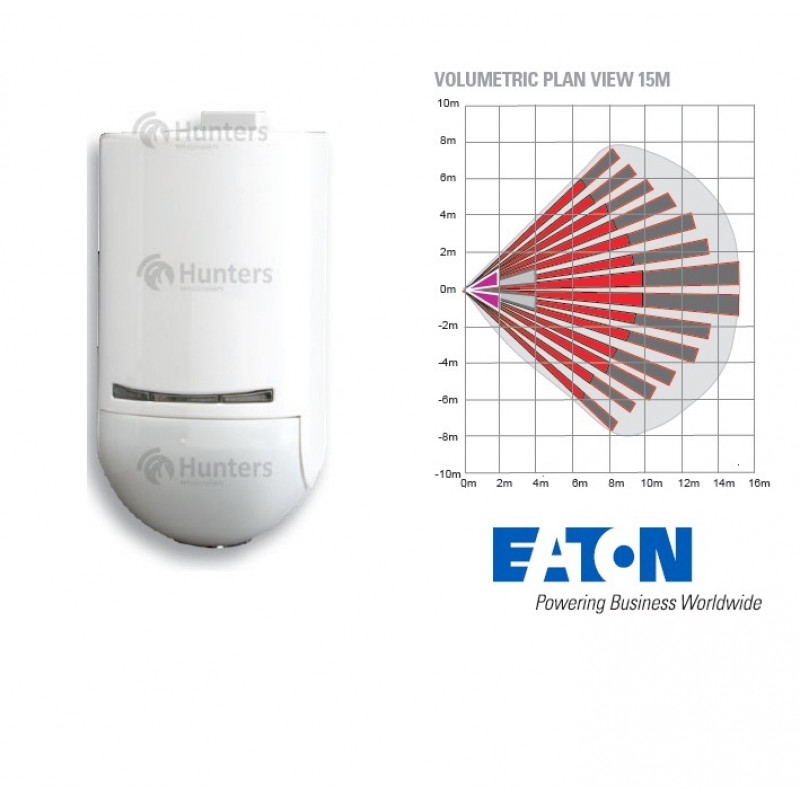

Eaton (DET-WDTPT-G2) NEW Wired Dual Tech Detector, PET Tolerant

Eaton (DET-WDTPT-G2) NEW Wired Dual Tech Detector, PET Tolerant

An internal detector with dual technology detection utilising a combination of PIR and microwave sensors, for use in domestic and commercial installations.

These grade 2 detectors use a combination of PIR and microwave detection technology to provide greater tolerances to changing environmental conditions. Available in both wired and radio variants, these detectors link seamlessly into the Eaton security system in terms of function, style and reliability. Pet tolerant variants are also available in wired and radio from.

The use of standard AA batteries for the radio variant reduces service complexity while maintaining typical battery life of two years.

• Combined passive infra-red and K-band 24GHz microwave detector
• Selectable FSL resistance values
• Adjustable microwave detection range
• Walk test input to enable LEDs
• Radio and wired options offering flexibility during installations
• Compatible with relevant Scantronic and Menvier ranges
• Radio variant typically gives 2 years battery life from 3 x standard AA batteries

Specifications:

• EN50131 Grade: 2 (PET Tolerant)
• Environmental class: II
• Coverage (m): 12m x 90 degree
• Mounting height: 2.0 -2.4m
• Microwave frequency: K-band 24.15 to 24.25GHz @ +16dBm
• Input voltage: 9 - 16 VDC
• Current consumption: 10mA min, 20mA max
• Wiring type: 4 wire CC, 2k2/4K7, 2K2/2K2, 4K7/4K7, 1K1/1K1(selectable)
• Pet tolerance: 25kg (PT version)
• Dimensions: (WxHxD) 55 x 115 x 55 mm
• Operating temperature: -10 degree C to 55 degree C
• Weight: 120g

Compatible Products:

• All current Eaton security control panels
