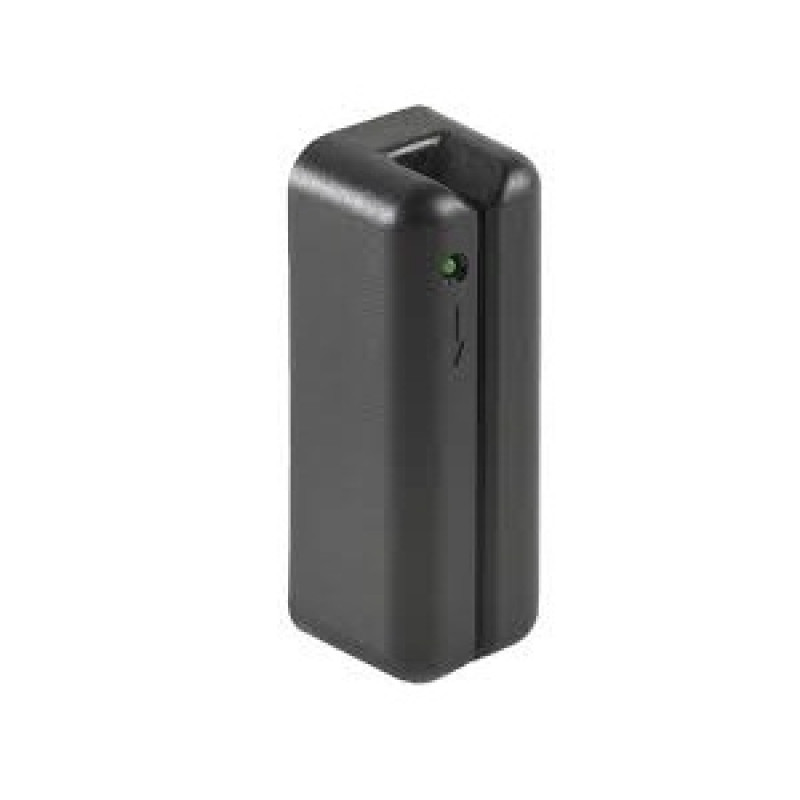

Controlsoft, AX-5232, Magstripe Reader - Clock and Data Output

Controlsoft, AX-5232, Magstripe Reader - Clock and Data Output

The AXM magstripe readers provide high-performance and reliability for any application; whether highsecurity access control, electronic point of sale, time and attendance or purely data acquisition. A wide variety of output formats are available to provide flexibility for most OEM applications.

Key Features:

• Single tri-colour LED normally red, green and yellow activated via external line
• Internal buzzer with external control line
• Stainless steel fixing plate with internal/external secure fixing
• Reliable read capability with head life in excess of 1 million passes
• Available either as Track 1, Track 2 or Track 3 ISO
• 2.5 metre (8.2ft) 8 core screened cable
• Dimensions: 112 x 42 x 36mm (4.40 x 1.65 x 1.41")
• Vandal-resistant
• Card speed is 125 to 380 cm per second (5 to 15" per second)
• Data range 325 to 12,250 bits per second
• All electronics are encapsulated in epoxy resin (except read head and buzzer aperture)
• Reads lo-co and hi-co magnetic-stripe cards
• Weatherproof –25°C to +65°C (-13°F to +150°F)
• CMOS Clock, Data and Card Present outputs

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
