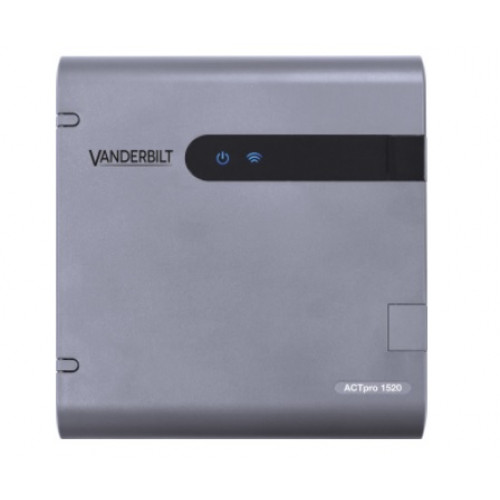

ACTpro-1520, Door Controller, 2A 12V DC

ACTpro-1520, Door Controller, 2A 12V DC

The ACTpro-1520 is a single door IP Controller with 2A 12V DC PSU and includes a dual-port Ethernet switch. The ACTpro-1520 controller supports 60,000 users, 2,000 User groups, door station technoogy (ACTpro-100 and ACTpro-120) and wireless locks and is ideal for a single door or for systems that need to grow to thousands of doors.

Key Features:

• Dual port Ethernet switch, allows for a max of 4 hubbed controllers
• 60,000 Users (4 credentials and one PIN code per user)
• 2,000 User groups (firmware version 1.08 or later required)
• Compatible with all ACTpro systems
• Mains present (Line voltage) Monitoring
• Emergency Door Release(EDR)/break glass Monitoring or Deadbolt monitoring
• (FW 1.09.06 or later required)
• Tamper monitoring
• Faults reported in ACT Enterprise software
• Anti-Passback
• Fire Override
• Airlock/Interlock
• Arm/Disarm intruder Panel
• IO module support (ACT-IOM)
• Elevator Control with ACTpro-IOM (maximum 96 floors)
• TCP / IP - DHCP / Static IP addresses
• Extra rights and door plans included
• Status LED’s
• Space in the enclosure for cable management
• Supports door station technology up to 32 doors per Controller
• Compatible with all ACT readers
• Vanderbilt OSDP readers including secure communications using 128bit AES
• encryption
• Support for HID OSDP readers
• ASSA Aperio Wireless locks Version 2 and Version 3 locks
• Whitelisted cards
• Support for deadbolt/lockbolt monitoring
• Motorized night lock
• Bluetooth mobile credential support via OSDP or Wiegand bluetooth readers

Specifications:

• Dimensions (L x W x H): 255 x 233 x 86 mm.

For more details, please refer with our attached datasheet.
