SPC4320.320-K1, w, LCD w. CR, 2 x IB44

SPC4320.320-K1, w, LCD w. CR, 2 x IB44

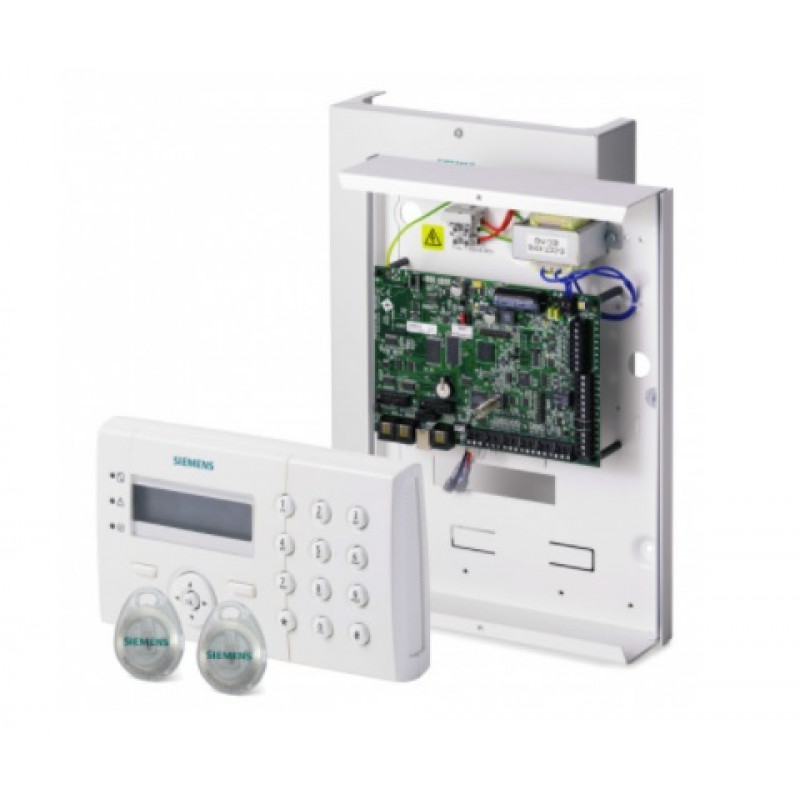

The SPC4320.320 Kit consists of a SPC4320.320 control panel, a SPCK421 keypad & 2 X EM4102 proximity tags. The kit is available for the UK only. The SPC4320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones. The controller provides 1 X-BUS ports (1 stub), 4 areas, 32 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 32 Intrunet wireless detectors (mixed with wired zones) and 1 remote control per user. The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.

Specifications:

• Event memory: 1000 intrusion events, 1000 access events
• Remote controls: Up to 32
• Max. number of hardwired zones: 32
• Max. number of wireless zones: 32 (take away wired zones)
• Door capacity: Max. 4 entry doors or 2 entry/exit doors
• Firmware: V3.4
• Color: RAL 9003 (signal white)
• Housing: Small metal housing (1.2mm mild steel)
• Operating current: Max. 190 mA at 12 VDC
• Interfaces: 1 X-Bus (1 spur) 1 RS232 1 USB (PC connection) 1 SPC Fast Programmer 1 Ethernet (RJ45)
• Number of on-board relays: 1 strobe (30 VDC / 1A resistive switching circuit)
• Operating temperature: 0 ~ +40 degC
• Output voltage: 13-14 VDC in normal conditions (mains powered & fully charged battery)
• Verification: 4 verification zones with max. 4 IP-cameras and 4 audio devices
• Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max 1 frame per sec.)
• Mains voltage: 230 VAC, +10%/ -15%, 50Hz
• Tamper contact: Front spring tamper, 2 auxiliary tamper contact inputs
• Audio: Up to 60 sec. pre / 60 sec. post audio recording
• EOL resistor: Dual 4K7 (default), other resistor combinations selectable
• Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
• Number of on-board zones: 8
• Quiescent current: Max. 170mA at 12 VDC.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
