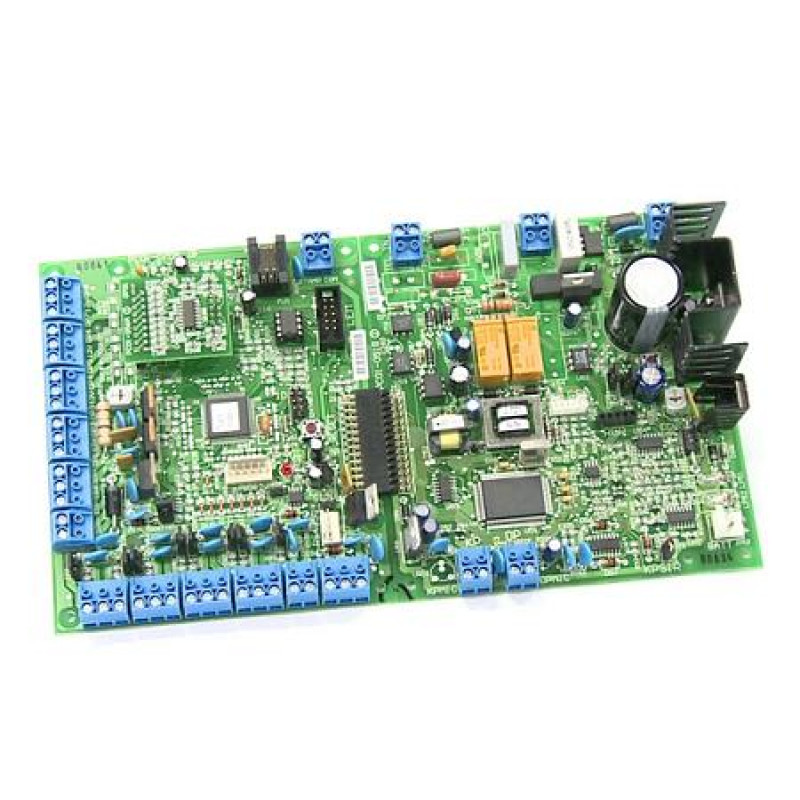

Comfort II Ultra Controller PCB (CM9000-ULT)

Comfort II Ultra Controller PCB (CM9000-ULT)

Comfort II Ultra Control Panel PCB only, with User Manual, Quick Reference Card. CP9000-ULT comes with enclsoure and transformer.

Specifications:

• 8 inputs 8 open-collector outputs, expandable to 64 Inputs and 64 outputs. using Slave Expansion Panels (SEP01) and Local Expansion Modules (LEM01)
• Auto-answering with Voicemail (digital answering maachine) with 8 mailboxes
• Dialer to 8 telephones, including Central Monitoring Stations (Alarm Receiving Centres), mobile or fixed line phones or SMS (Text messaging) using optionsl UCM/GSM Module). Each alarm type can dial to any combination of 8 numbers
• Comprehensive User Menu to guide the user through all operations, on the telephone or keypad
• Intercom with keypads and door stations
• Preprogrammed Alarm and Zones Types
• Supports up to 8 keypads and 3 Door Stations
• 32 Time Programs
• 64 User Timers
• 16 Reminder Messages
• Outputs can be programmed as On/Off, pulsed or as Infrared outputs
• Universal Communications Modules with serial or Ethernet Interface for programming and external interfaces. Up to 8 UCMs in a system
• Up to 16 user codes, 8 with mailboxes
• Supports external interfaces to X10, C-Bus, EIB/KNX, Dynalite, Rako, Lutron, Z-Wave
• 1024 Programmable Responses which can be triggered by defined events. Conditional If/Then/Else logic is supported
• Touchscreens, Scene Control Switches, Internet webserver are also available.

Delivery Note: 1-2 weeks Lead Time Applicable.
