Addlestone, BH258, Adaptive Video Equaliser 1.6 KM Cat 5e/6

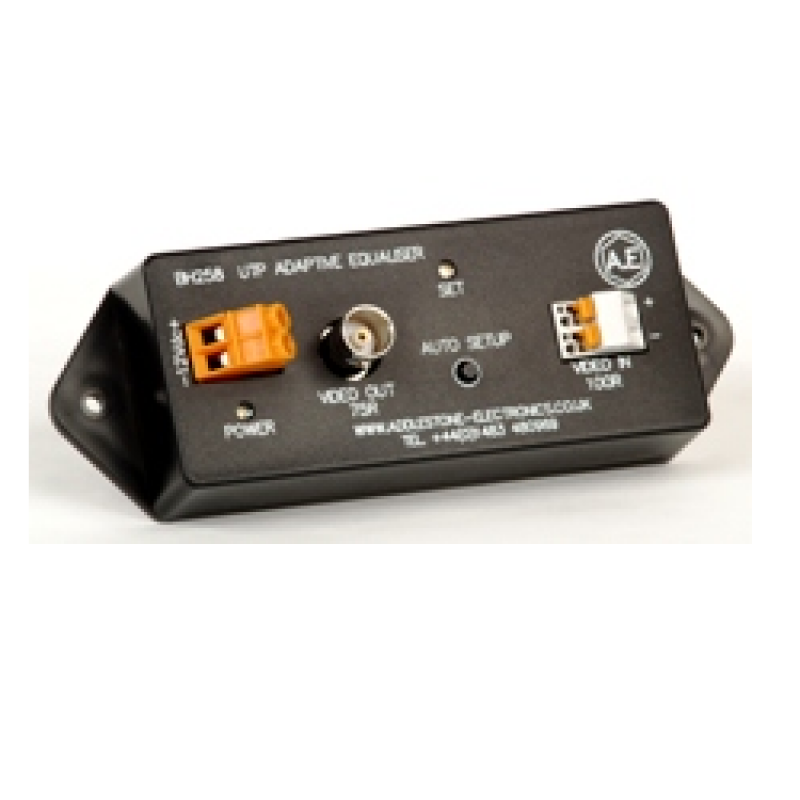

The BH258 unit will automatically equalise a video signal at the push of a button and deliver a high quality video signal over Cat5e/6 cable of up to 1 mile (1.6km). Only a passive balun is required at the camera and this is supplied free of charge along with the 12V DC power supply.
• Fully automatic, no user adjustment required
• Automatic polarity detection and inversion
• Automatically restores settings on power up
• Automatic cable type compensation
• Low power consumption
• No set-up test equipment required
• Simple and quick installation
|
TECHNICAL
|
DESCRIPTION
|
|---|---|
|
INPUT SIGNAL TYPE
|
Balanced Composite video signal. NTSC or PAL
|
|
INPUT IMPEDANCE
|
100 Ohm
|
|
OUTPUT SIGNAL
|
1.0V Pk-Pk @ 75 Ohm |
|
SIGNAL INPUT CONNECTOR
|
Spring-loaded connector, maximum cable size 1.3mm² |
|
SIGNAL OUTPUT CONNECTOR
|
BNC male type coax connector |
|
AT UNITY GAIN
|
Differential Phase <1º. Differential Gain <1%
|
| BANDWIDTH |
40Hz to 6MHZ
|
|
PERFORMANCE
|
Will equalise a video signal on the following cable types: Cat5e/6 Unshielded Twisted Pair up to 1 mile (1.6km) Cat5e/6 Shielded Twisted Pair up to 1 mile (1.6km) Standard BT Cable 1/2 mile (800m) *If you have a specific cable you would like us to test, please contact us at the address below.
|
|
POLARITY DETECTION
|
Automatic detection & correction of inverted input
|
|
SURGE PROTECTION
|
Transorbs and gas tubes fitted as standard
|
|
POWER REQUIREMENTS
|
12V DC @ 115mA
|
|
POWER SUPPLY
|
Included, international plug top switch-mode regulated power supply 90 - 265Vac maximum 2 Watts consumption. Supplied with 'Country specific input connector
|
|
POWER CONNECTOR
|
Screw terminal maximum cable size 4mm²
loaded screw less terminal block |
|
OPERATING TEMP
|
-30ºC to +45ºC
|
|
CONTROLS
|
Auto setup button
|
|
INDICATOR LED’s
|
Green LED indicates power Yellow LED indicates signal equalised and ‘SET’
|
|
DIMENSIONS
|
132mm L x 45mm W x 23mm H (excluding BNC connectors)
|
|
MOUNTING
|
Via 2 x 3.5mm holes for convenient screw fixing
|
