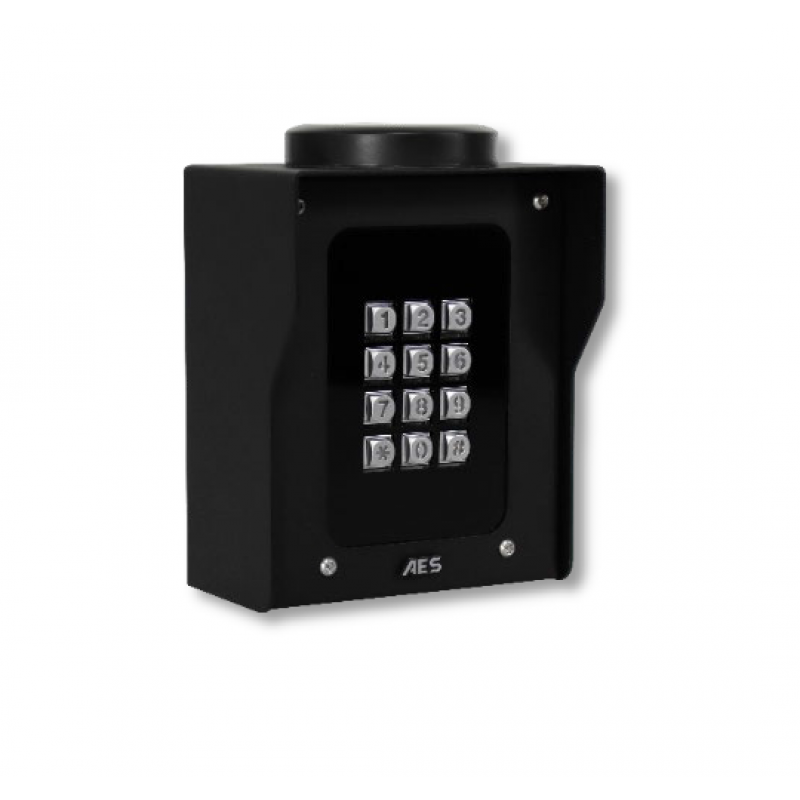

AES (KEY-MST-PBK-EU) Master panel with keypad & built in 4G PRIME PCB
- Brand:AES
- Product Code:KEY-MST-PBK-EU
- Availability:Please Call or Email Us to Check Availability
AES (KEY-MST-PBK-EU) Master panel with keypad & built in 4G PRIME PCB
Master unit with keypad
The newest standalone Cellular/4G keypad system.
-
Up to 6 auxiliary units can be connected to a master unit: Relay 1 and 2 on master unit; relays 3 to 8 on auxiliary units.
-
Can have a keypad unit in one set up.
-
DDA LEDS on each auxiliary unit indicates correct or incorrect code/card used.
-
Relay on every auxiliary unit that can be set via a dip switch.
-
Keypad tones/ confirmation sound can be adjusted on auxiliary units.
-
Units are wired via 5 cores of cat 5 cable.
-
Now compatible with our AES PRO APP.
TECHNICAL SPECIFICATION:
- Power: 24v d.c
- Current: 300mA/2A Peak, 100mA Per Auxiliary Unit
- Weather Rating: IP55
- Relay Type: 2 x N/C & N/O Contacts
- Total Permanent Keypad Codes: 250
- Time Restricted Codes/Cards (Relay 1 only): 250
- Temporary Codes/Cards (Relay 1 only): 50
All black panels with textured powder coated aluminium hood and gloss black acrylic facia trim over a tough metal back plate. Keypad panels have a blue illuminated buttons.
OPTIONAL:
| KEY-MST-PBPK-EU | Master panel with keypad, proximity reader & built in 4G PRIME PCB |
| KEY-MST-PBP-EU | Master panel with proximity reader & built in 4G PRIME PCB |
| KEY-AUX-IBPK-EU | Auxiliary modular keypad & prox panel |
| KEY-AUX-IBK-EU | Auxiliary modular keypad panel |
| KEY-AUX-IBP-EU | Auxiliary modular prox panel |
| KEY-AUX-PBPK-EU | Auxiliary pedestal keypad & prox panel |
| KEY-AUX-PBK-EU | Auxiliary pedestal keypad panel |
| KEY-AUX-PBP-EU | Auxiliary pedestal prox panel |
For more details on this product range, including part numbers, please click on the links below to download the relevant document for this product.
