CDV (SOLAR-2RTM) 2-Door Modern Auxiliary Reader
- Brand:CDVI
- Product Code:SOLAR-2RTM
- Availability:Please Call or Email Us to Check Availability

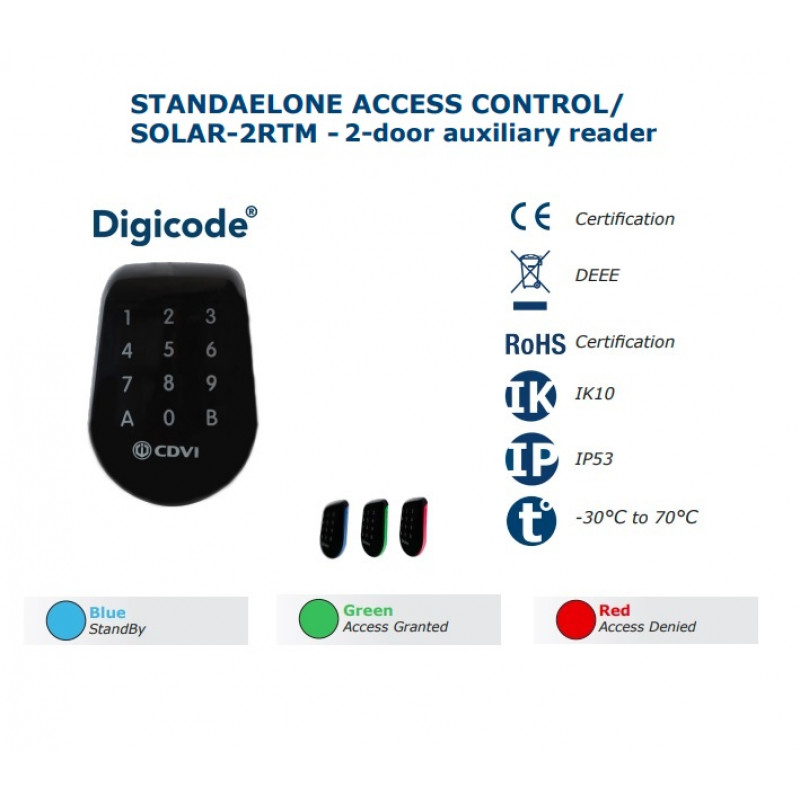

CDV (SOLAR-2RTM) 2-Door Modern Auxiliary Reader
The SOLAR-2RTM is an auxiliary reader for the SOLAR-2R 2 door controller, enabling 3 different operating modes (prox and pin, prox only, pin only).
Added to the main controller, the SOLAR-2RTM allows reading on the other side of the door without the need of a second remote electronics box.
This stylish and modern reader has backlighting and audible feedback for a user-friendly experience.
- Connects to SOLAR-2R
- Stylish design
- Reflective backlight
- Audible and visual feedback
- Provides prox in, prox out for standalone applications
TECHNICAL INFORMATION:
- IP Rating: IP53
- IK Rating: IK10
- Technology: 125KHz
- Protocol: MARIN
- 2 inputs: push button + 2 door contacts
- 2 relays
- Power Supply: 12Vdc
- Power Consumption: 200mA
- Dimensions: 90 x 130 x 35 mm
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
