CDV (GALEO-W) Digicode® keypad with Wiegand output
- Brand:CDVI
- Product Code:GALEO-W
- Availability:Please Call or Email Us to Check Availability

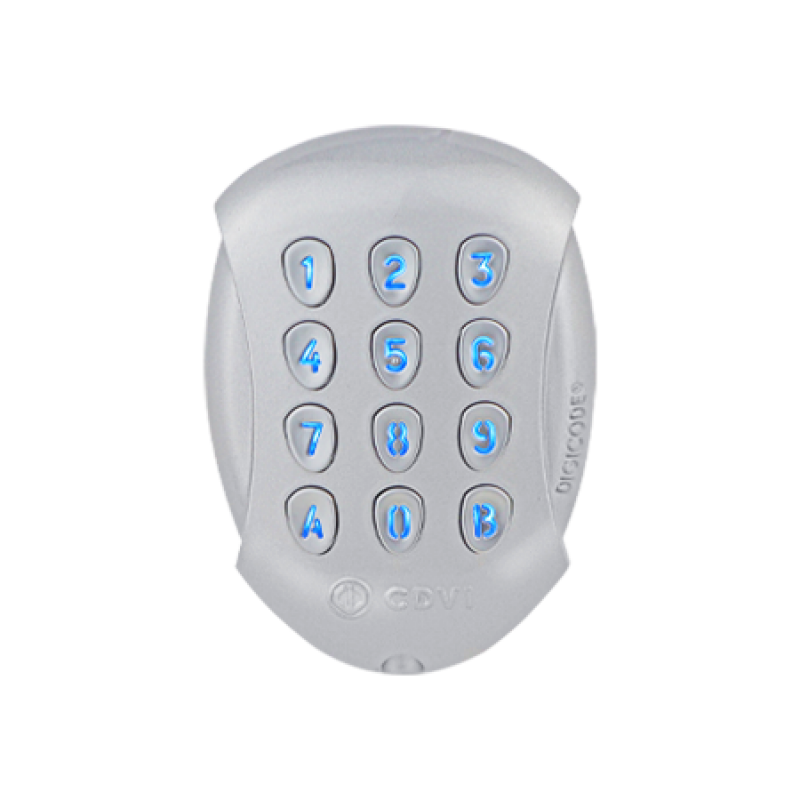

CDV (GALEO-W) Digicode® Stylish Online Keypad with Wiegand output
The GALEO is a stylish and innovative keypad, combining good looks with a high level of ruggedness and vandal resistance.
The GALEO is ideally suited for both, external or internal use. Clever innovation has resulted in a keypad that can cope with the harshest of environments. With the benefit of soft blue back-lighting and a modern but uncompromising design, GALEO is truly a keypad for all your coded entry solutions.
The GALEO-W is supplied for connection to online access control systems via a door controller such as our own Atrium A22 or third party controllers using either wiegand 26 bit or ISO Track 2 outputs. Data can be set to ARK or decimal mode allowing 4, 5 or 6 digit use.
- Backlit keypad
- Stylish & vandal resistant
- Secure surface mount
- Externally rated
- Wiegand 26 bit
TECHNICAL INFORMATION:
- Material: Zamak®
- Mounting with Torx® screws
- Technology: 125Khz
- Format: Wiegand 26 or ISO Track 2
- Operating Voltage: 12Vdc
- Max current: 100mA
- Weight: 100gr
- Dimensions: 110 x 75 x 15mm
- Environment: -25°C to +70°C
- IP64
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
