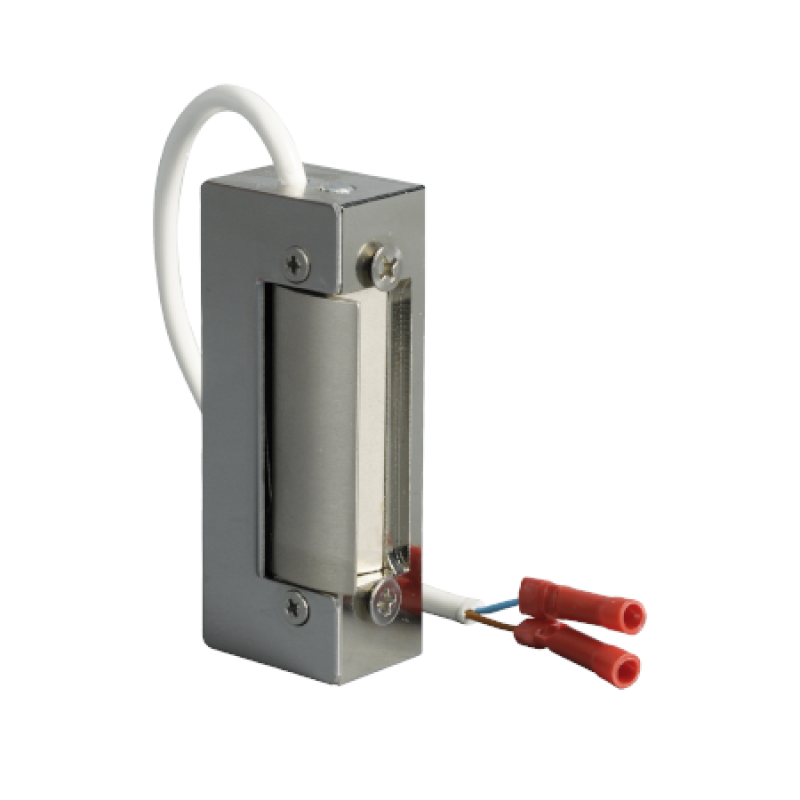

CDVI, GPCF-12CC, 12Vdc Fire Rated Fail Secure Strike - Continuous
- Brand:CDVI
- Product Code:GPCF-12CC
- Availability:Please Call or Email Us to Check Availability
CDVI, GPCF12CC, 12Vdc Fire Rated Fail Secure Strike - Continuous
The GPCF from the FIRELOCK series by CDVI offers high quality, fail secure locking with the important feature being its resistance to fire under EN 1634-1 (120min). The GPCF is a high performance and versatile lock to suit many requirements from high security due to it’s 1 metric ton holding force or superior fire resilience.
GPCF is a fire rated strike which has passed the EN 1634-1 regulation for fire resistance at 120 mins test time (certificate on reverse). This lock is a high quality stainless steel, robust lock that is perfectly suited to installation on fire rated doors, with 200mm of pre-terminated cable and compact in nature the GPCF provides easy installation.
All CDVI strikes include the Varistor built in to eliminate back EMF to electronic control units, increasing the reliability of your install.
GPCF is available in 12Vac/dc, 12Vdc Constant Current Rated and 24Vdc Constant Current Rated along with optional faceplates from the DIAX range.
Key Features:
- Certified fire rating
- 12Vdc and 24Vdc available
- Symmetrical
- Option of fail secure or fail safe
- Fits all CDVI faceplates
Specifications:
- 12 V CC
- Voorplaten in optie: T1I en T290
- Geleverd met varistor (bescherming tegen het self-effect)
- Voeding: 12 V AC/DC
- Verbruik 'arbeidsstroom', sluitplaat type CC (= continu belasting) (DC): 12 V DC = 380 mA
