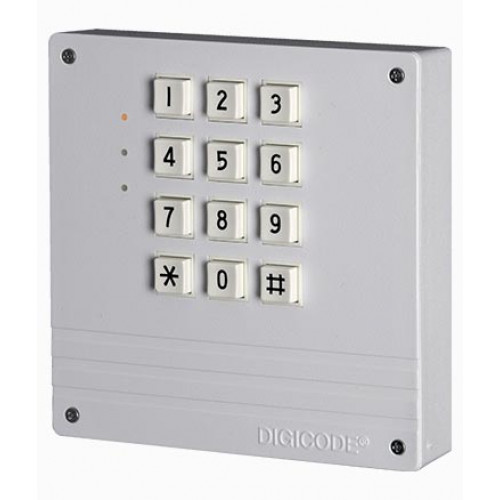

DG502-UP, Standalone 2-Door Controller
- Brand:CDVI
- Product Code:DG502-UP
- Availability:Please Call or Email Us to Check Availability
DG502-UP, Standalone 2-Door Controller
- 2 door controller
- Assign users to door 1, door 2 or both
- 500 user capacity
- 2 exit button inputs
- 2 timed/latching relay outputs
Commercial information:
- The DG502-UP is a high quality 2-door controller, which is simple to install, programme and maintain. A standalone controller, programming is carried out via a master programming code, and simple commands allow users to be added or deleted and lock time to be adjusted.
- Control of fail secure or fail safe locks makes the DG502-UP a very flexible controller, being suitable for standard locking requirements or more critical fire escape routes.
- A user is issued a card or fob, and associated to one of 500 available slots. If the user loses the card/fob, then the slot is deleted and a new card/fob issued. Non-volatile memory ensures all information is retained during power failure.
Technical information
- Two relays
- Onboard electronics
- Tamper contact
- Power Supply: 12Vac/dc
- Power Consumption: 200mA
- Dimensions: 116 x 116 x 23mm
