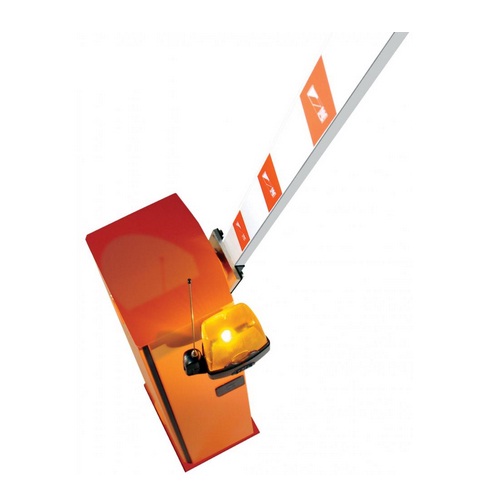

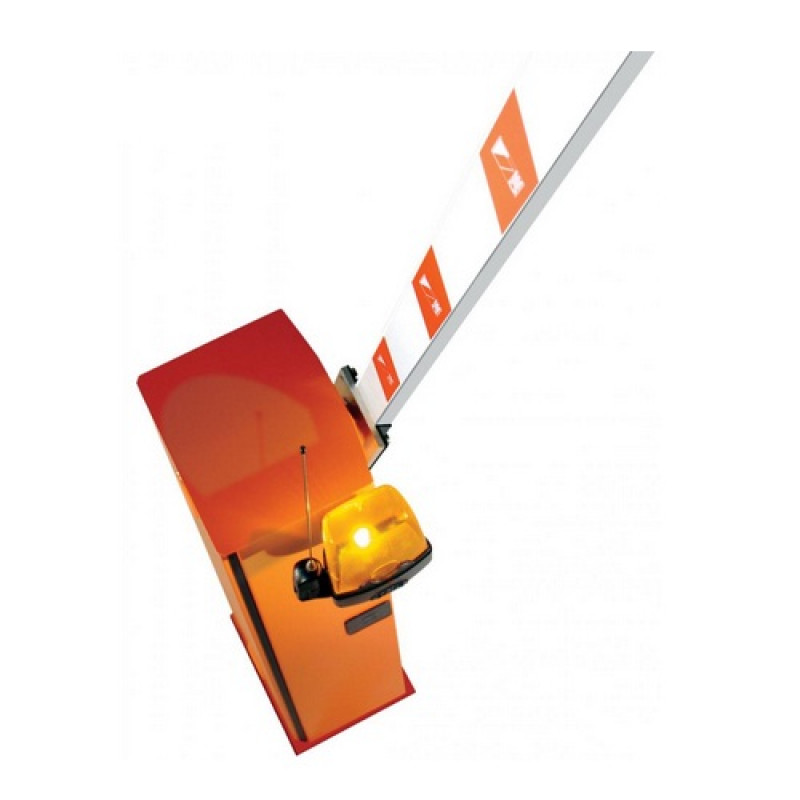

CAME (G2500) 230 V AC Barrier with Gearmotors and On-board Control Panel

CAME (G2500) 230 V AC Barrier with Gearmotors and On-board Control Panel

Barrier in galvanised and painted steel. Fitted to take accessories. Ideal solution for large passageways in apartment blocks and industrial facilities. Passage clearance up to 6.5m.

• Ideal for private or public car parks.
• The model for passages up to 2.5m (001G2500) comes in the 230 V AC version, while the models for passages up to 3.75m (001G3750 and 001G3751) and up to 6.5m (001G6500 and 001G6501) are in the 24 V DC version.
• There is also a version in AISI 304 steel.
• It can be installed either to the left or right. The mounting procedures are easy and quick.
• A truly complete range of accessories to customise your installation, which includes a choice of safety accessories for peace of mind during operation.
• The special joint is for installing CAME barriers even when height is an issue when raising or lowering the boom, as in underground parking lots.

The 230 V electronics

• only 2 seconds to clear the opening for effective transit management
• self-learning of the radio code from the transmitter to the receiver
• possibility of “hold-to-run” command according to what is envisaged in the applicable safety standards

Technical Specifications:

• Protection rating (IP): 54
• Power supply (V - 50/60 Hz): 230 AC
• Motor power supply (V): 230 AC 50/60 Hz
• Current draw (A): 1
• Power (W): 120
• Opening time at 90° (s): 4
• Duty cycle (%): 30
• Torque (Nm): 70
• Operating temperature (°C): -20 ÷ +55
• Motor thermo-protection (°C): 150

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
