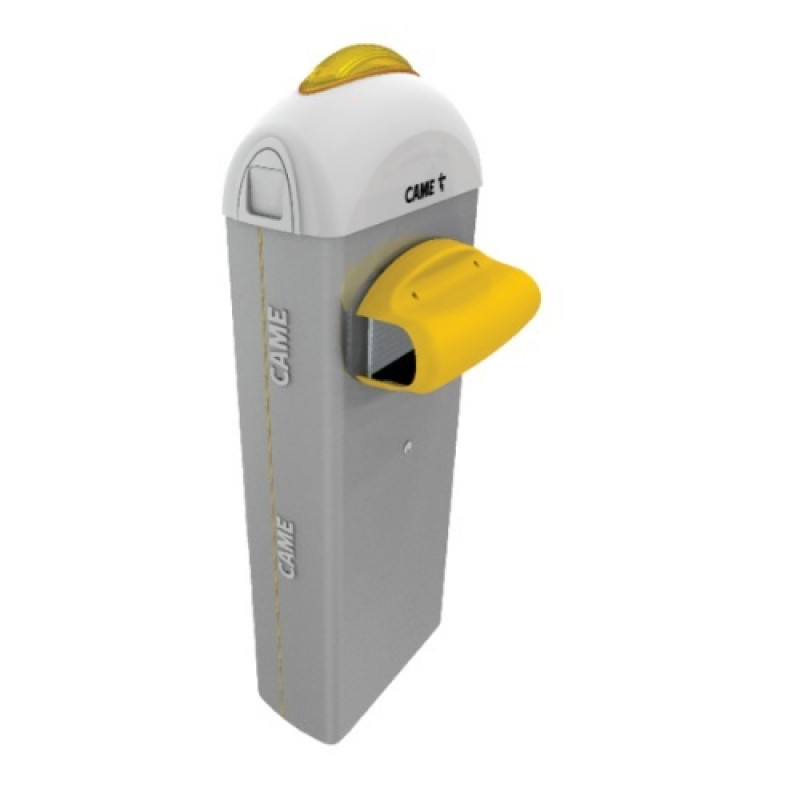

CAME, G2080IZ, 24v Stainless Steel Barrier Unit inc PCB- up to 7.6m
- Brand:Came
- Product Code:G2080IZ
- Availability:Please Call or Email Us to Check Availability
CAME, G2080IZ, 24v Stainless Steel Barrier Unit inc PCB- up to 7.6m
24v Stainless Steel Barrier Unit inc PCB- up to 7.6m
Main Features:
- 24 V DC gearmotor available also with encoder to ensure heavy-duty service levels.
- Linear design with galvanized steel cabinet with rough finish.
- Also available made of AISI 304 stainless steel.
- Built-in LED flashing light.
- Photocells that can be integrated directly into the cabinet.
- Boom casing for protection against shearing in opening and closing.
Technical Data:
- Protection rating (IP): 54
- Power supply (V - 50/60 Hz): 230 AC
- Power supply motor (V): 24 DC
- Max draw (A): 15
- Power rating (W): 300
- Torque (Nm): 600
- Opening time at 90° (s) 4 ÷ 8
- Duty cycle INTENSIVE USE
- Operating temperature: (°C) -20 ÷ +55
- Reduction ratio (i) 1/202
- Insulation class I
For more details, please refer with our attached datasheet.
