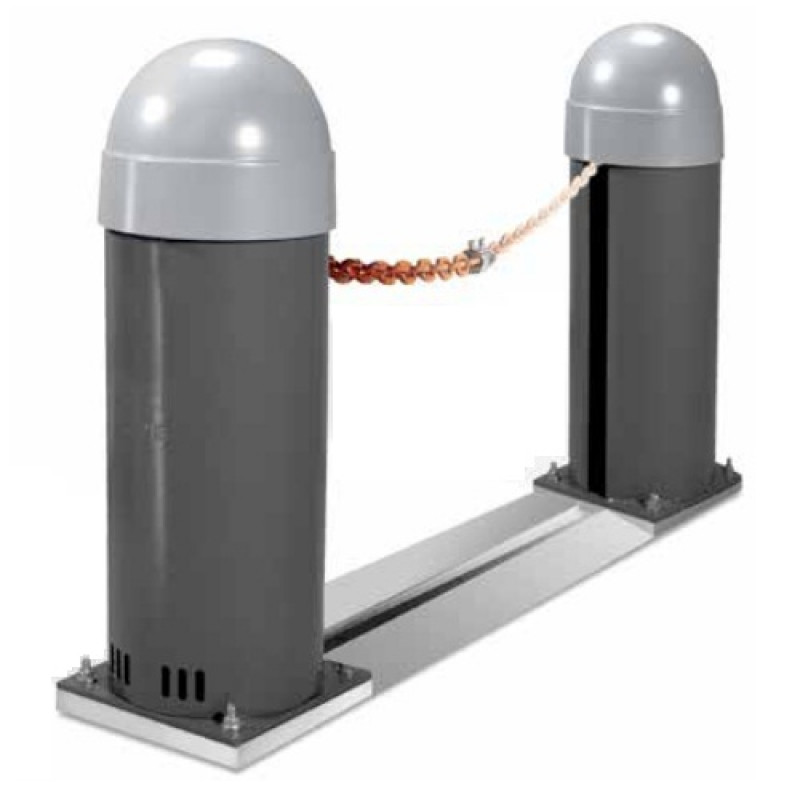

CAME (CAT-X24) 24 V DC Chain Barrier

CAME (CAT-X24) 24 V DC Chain Barrier

Bollard with Operator (24 v) and control Panel. The ideal solution when applying chain barriers in historical town centres or in private and public settings.

• A CAME-patented proposal for managing reserved area parking.
• A sturdy steel product, impact-resistant.
• The guides ensure protection to the chain when passage isopen.
• The 24 V DC version provides obstacle detection and chainspeed adjustment.
• Easy and quick to install.

Automatic chain barrier
Design that complements any architectural context for openings up to 16 m; Cat is ideal for public or private parking facilities or to prevent access for pedestrian or limited traffic areas.

Extremely versatile
complete operator. Motor, control panel, radio receiver and all the configurations for operation in case of a power failure, are contained within the pillar.
easy release. In the event of a power failure and for all emergency situations, the special security padlock with customised key allows the immediate release of the chain.
total safety. Control panel built into the unit.

The advantages of 24 V electronics

• mechanical limit switches for easy-to-adjust opening and closing.
• automatic closing envisaged after the adjustable preset time.
• “no self-hold” command that requires continuous pressure on the button for the whole manoeuvre.

Technical Specifications:

• Protection rating (IP): 54
• Power supply (V - 50/60 Hz): 230 AC
• Motor power supply (V): 24 DC
• Current draw (A): 20 Max.
• Power (W): 240
• Manoeuvre time (s): ADJUSTABLE
• Duty cycle (%): INTENSIVE SERVICE
• Traction force (kg): 50
• Operating temperature (°C): -20 ÷ +55

For more details, please refer with our attached datasheet.
