CAME, MTMA/GSM, Audio GSM Module
- Brand:Came
- Product Code:MTMA/GSM
- Availability:Please Call or Email Us to Check Availability
CAME, MTMA/GSM, Audio GSM Module
Audio GSM Module
Description:

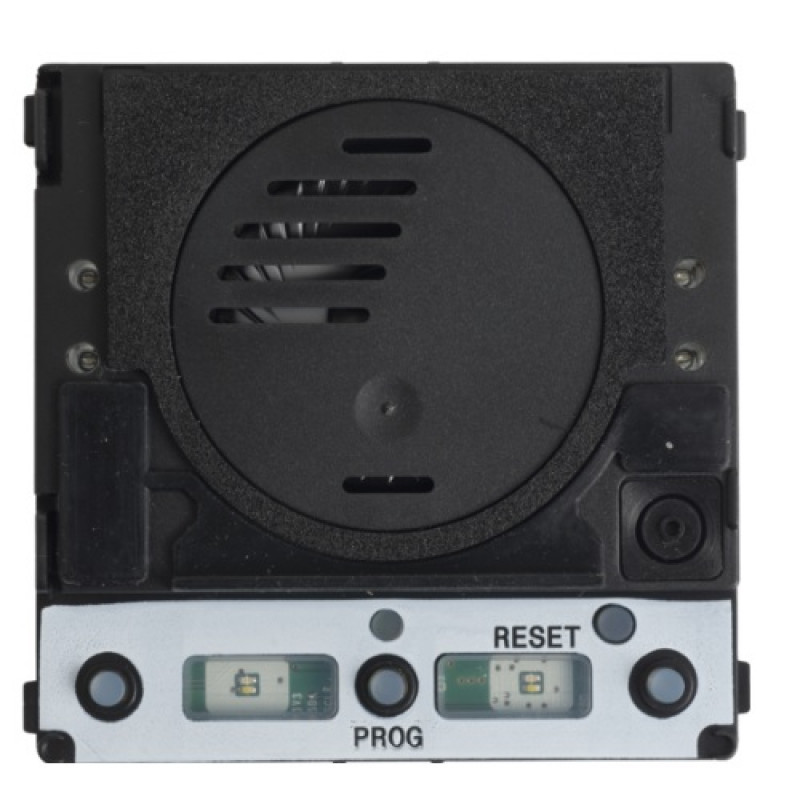

Intercom modules for GSM systems.Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. Slot for on-board micro SIM (micro SIM not included). It can manage up to 1000 telephone numbers and remotely opens the gateway via a telephone ring. Featuring a local electric lock control, auxiliary contact (1A, 30V max), 2 inputs for call 1 and 2 (programmable I/O). The front is equipped with LEDs for visual indication of the system status. It allows to adjust the audio volume of the microphone and speaker and the activation time of the electric lock. Manual programming via SMS or from PC through the MINI USB connector on the front. Supplied with antenna and 2 m cable for antenna remote control. To finish off with intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.
Technical Data:
- Dimensions (mm): 85 x 85 x 35
- Packaging dimensions (mm):156 x 57 x 110
- Power supply (V):14 ÷ 24 AC/DC
- Consumption in stand-by mode (mA):50
- Max. absorption (mA):120
- Operating temperature (°C):-25 ÷ +55
- Protection rating (IP):54
- Resolution (pixels):1280 x 720
- 900 MHz GSM EGSM signal strength:33 dBm
- 1800 MHz GSM DCS signal strength:30 dBm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
