CAME (BXV1000GF-KIT) BXV Rapid Sliding Gate Kit 24V Upto 1000KG

CAME (BXV1000GF-KIT) BXV Rapid Sliding Gate Kit 24V upto 1000kg

Complete kit for a sliding gate weighing up to 1000 kg / max width 20 m

Key Features:

• 4 motors, all with encoder control also available in the Rapid version.
• The 400 and 600 kg versions comply with current standards on impact forces.
• Can operate in emergency mode during power outages.
• Can retrofit magnetic limit-switches and heater for extreme weather conditions.
• Control board, with separate terminal board and display, for simpler installing and diagnosing. Save up to 250 different users.
• On-board Rolling Code and (Twin) Key Code radio-frequency decoding.
• It manages RIO System 2.0 wireless safety accessories via the 806SS-0040 accessory.
• Self-diagnosing safety devices – whether wireless or not.
• Set up to run CAME KEY and to connect to the cloud via CAME Connect.
• Used to directly manage CAME key pads using the R800 accessory or connect CAME transponder selectors using the R700 accessory.
• Connection used with the RSE accessory.
• Also available with magnetic limit-switches.
• The operator can be managed from a remote location via app through the CAME GATEWAY.
• New key-protected, manual, mechanical system to release the gate leaf.
• ZN7 control board, with separate terminals, and display, for easier start-ups and diagnoses.
• Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.
• It handles up to 25 Rolling Code users.
• Ready to fit magnetic limit-switches and heater unit for extreme weather applications.
• It is set up to connect to the wireless Rio safety system.

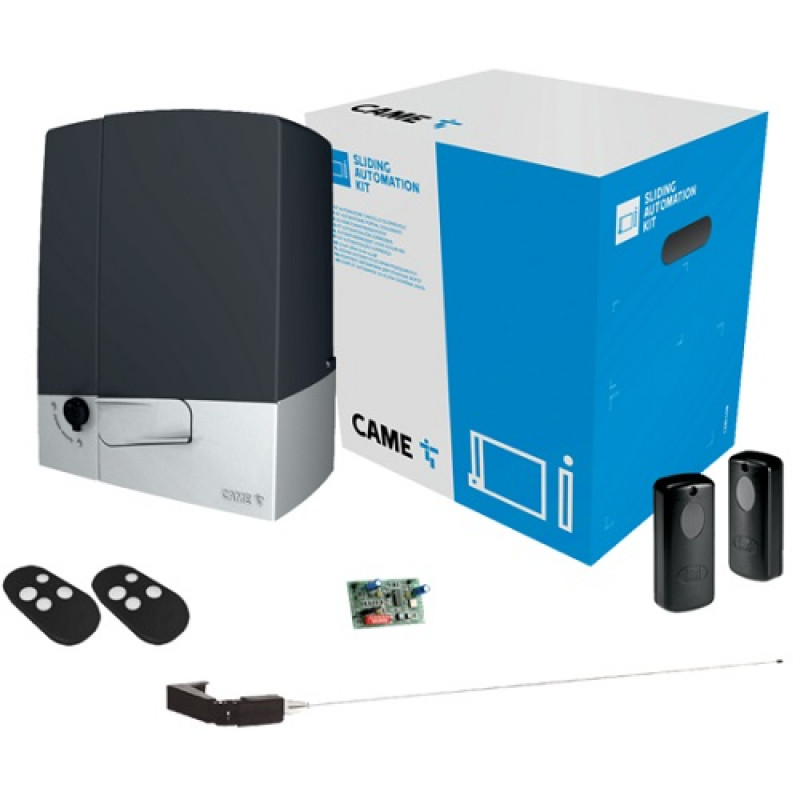

Kit Comprises of:

• 1 x 801MS-0250 BXV10AGF - Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for
• gates weighing up to 1,000 kg that are up to 20-m long. RAL7024-gray cover (Rapid version up to 20 m/min.).
• 1 x 001AF43S Plug-in radio-frequency control card
• 2 x 806TS-0122 TOPD4RKS - Double frequency 4-button rolling code transmitter, black colour.
• 1 x 001TOP-A433N Tuned Antenna.
• 1 x 001DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 m.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
