TDSI, 5002-0455, DIGIgarde PLUS Finger/Mifare/PIN Reader

TDSI, 5002-0455, DIGIgarde PLUS Finger/Mifare/PIN Reader

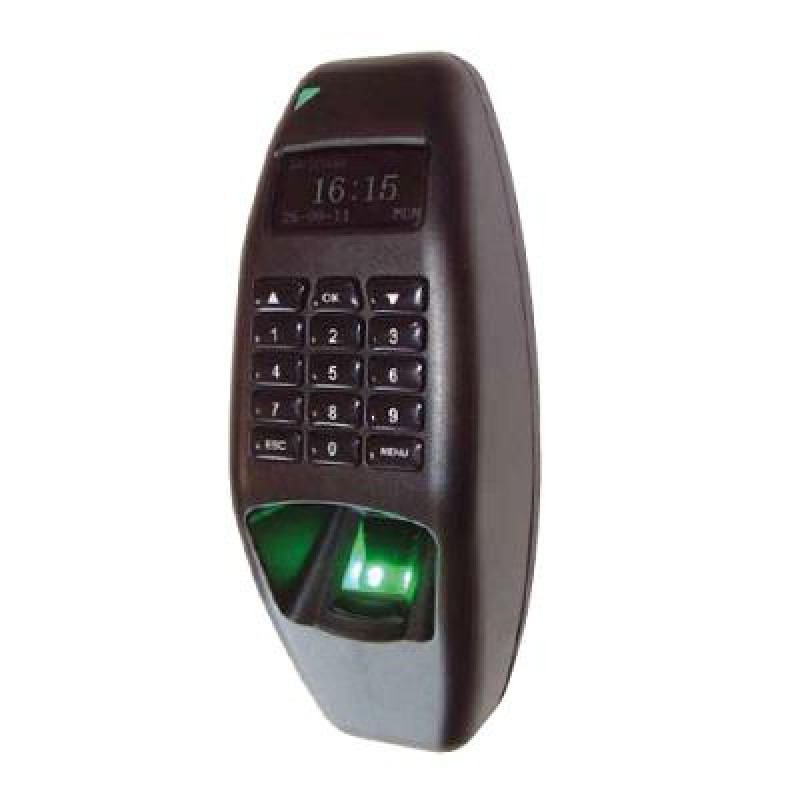

DIGIgarde PLUS combines all authentication modes – something you know (PIN), something you have (card) and something you are (finger) in one attractive and cost-effective unit.

Featuring a high-resolution optical sensor and an extremely quick matching algorithm, DIGIgarde PLUS gives maximum usability and is suitable for control of access points (that require a control of a large number of users and are subject to high a throughput of traffic) or Time & Attendance “clocking” stations.

The backlit tactile keypad, white-on-black display and dual-colour LED give user of the product excellent feedback and an easy to operate local programming interface.

Key Features:

• IP65
• PoE Powered
• 1,2 or 3 factor
• 8,000 templates
• TCP/IP or RS485 connections
• Networkable or stand alone
• Access control
• Time & Attendance
• SDK available

Key Benefits:

Operates stand-alone or in conjunction with Access Controller
Use the reader to control the door or alternatively integrate it into a full access control system providing real-time event monitoring and central system programming.

T&A
Use the T&A functionality of the reader to allow users to clock-in and clock out.

IP 65 Rated
For internal or external mounting.

1, 2 or 3 factor authentication
Gives you the flexibility to choose the level of security that matches your needs

PoE powered
Removes the need to run a separate power cable to the reader.

Built in Mifare ™ Card reader
Allows storage of the fingerprint template on a smart card. Use the card for other applications.

High speed matching algorithm
Quickly scans and processes the fingerprint maximising user convenience

Bypass card capability
Provides a means to grant access for those with badly damaged fingerprints

APB
Allows two readers to be used to help prevent security breaches

External reader input
Connect a third-party reader to allow a fingerprint template to be associated with a regular access control card.

Custom message facility
Display user-specific messages on the reader to enhance user feedback

High resolution optical sensor
Particularly suited for scanning small fingerprints

TCP/IP, RS232 or RS485 connections
Supports a wide range of connection methods providing you with the connection choice for your installation

2 line LCD display
Enhances user feedback and allows for simple programming.

Integrated with EXgarde
Manage the capture and distribution of templates from the same software used to monitor and program your access control system. Use the SDK to integrate DIGIgarde PLUS with other systems.

Tamper protection
Be alerted immediately to the reader being removed from the wall.

For more details, please refer with our attached datasheet.
