Bell (BS1/VRS) 1 Way Surface Bellissimo Vandal Resistant Kit

Bell (BS1/VRS) 1 Way Surface Bellissimo Vandal Resistant Kit

A bellissimo video door entry system consists of a door panel, positioned at the entrance of a building, video telephones (videophone), placed inside of the building for the convenience of the occupants and a power supply and controller which are usually located inside an electrical cupboard. The door panel comprises of a two-way speech unit, a camera and a push button – which must be depressed by a visitor to initiate a call. The videophone, which rings in response, allows a two-way conversation via a handset whilst the caller can be observed through the integral display. The operator can selectively allow visitors access to the building by pressing a button on the videophone and so electrically releasing the door.

The bellissimo 1-way Video Door Entry System is suitable for any building requiring a single push button at the entrance, such as houses, individual flats and offices. For multiway systems please refer to either the “bellissimo 2-72-way Video Entry System” or “bellissimo Digital Video Entry System” manuals.

The bellissimo “1-way” system is supplied with a dedicated door controller, which has been specifically optimised for “1-way” systems, ensuring simple installation. This basic system can support up to 3 extension videophones (more with additional power supplies). Multiple entrances can be supported with the addition of one panel and one door controller for each entrance.

Key Features:

• System generally connected with standard CAT5 cables.
• No need for separate co-axial cable.
• The video telephone operates in an innovative electronic mode whereby the supply voltage is 'stepped up' from the controller to achieve optimum operation over long distances.
• A standard installation can accommodate distances of up to 300 metres from the panel to telephone when using recommended cable specifications.
• High resolution CCD camera with infrared lamps for night vision.
• Optional Tradesmen entry.
• One model of bellissimo video telephone whether connected to a conventional or digital panel.
• Easy connection to a bellcall digital front door panel

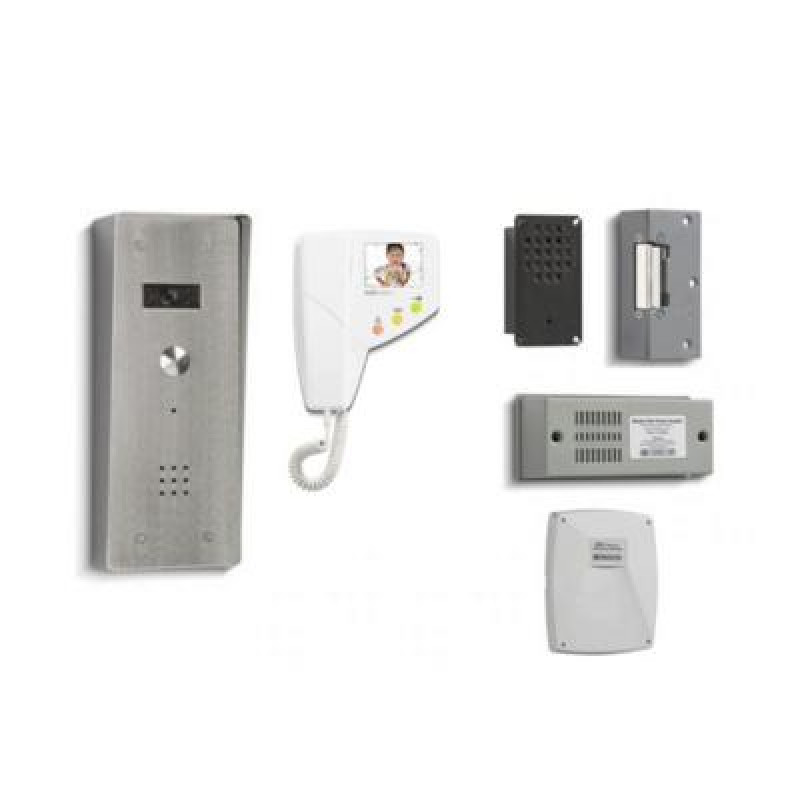

Kit Includes:

• 1 x BSP1/VR 1 Way flush panel
• 1 x BS Colour video monitor
• 1x BSC4 telephone controller (one for every 4 telephones)
• 1 x PS4 Power supply unit
• 1 x 203 Lock release
• 1 x BS/DESK Desk mount kit

Note: We have other series available on request 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, 18 & 20 Stations.
