Bell (BS1/VR) ONE Way Flush Bellissimo Vandal Resistant Kit

Bell (BS1/VR) 1 Way Flush Bellissimo Vandal Resistant Kit

A bellissimo video door entry system consists of a door panel, positioned at the entrance of a building, video telephones (videophone), placed inside of the building for the convenience of the occupants and a power supply and controller which are usually located inside an electrical cupboard. The door panel comprises of a two-way speech unit, a camera and a push button – which must be depressed by a visitor to initiate a call. The videophone, which rings in response, allows a two-way conversation via a handset whilst the caller can be observed through the integral display. The operator can selectively allow visitors access to the building by pressing a button on the videophone and so electrically releasing the door.

The bellissimo 1-way Video Door Entry System is suitable for any building requiring a single push button at the entrance, such as houses, individual flats and offices. For multiway systems please refer to either the “bellissimo 2-72-way Video Entry System” or “bellissimo Digital Video Entry System” manuals.

The bellissimo “1-way” system is supplied with a dedicated door controller, which has been specifically optimised for “1-way” systems, ensuring simple installation. This basic system can support up to 3 extension videophones (more with additional power supplies). Multiple entrances can be supported with the addition of one panel and one door controller for each entrance.

Key Features:

• System generally connected with standard CAT5 cables.
• No need for separate co-axial cable.
• The video telephone operates in an innovative electronic mode whereby the supply voltage is 'stepped up' from the controller to achieve optimum operation over long distances.
• A standard installation can accommodate distances of up to 300 metres from the panel to telephone when using recommended cable specifications.
• High resolution CCD camera with infrared lamps for night vision.
• Optional Tradesmen entry.
• One model of bellissimo video telephone whether connected to a conventional or digital panel.
• Easy connection to a bellcall digital front door panel

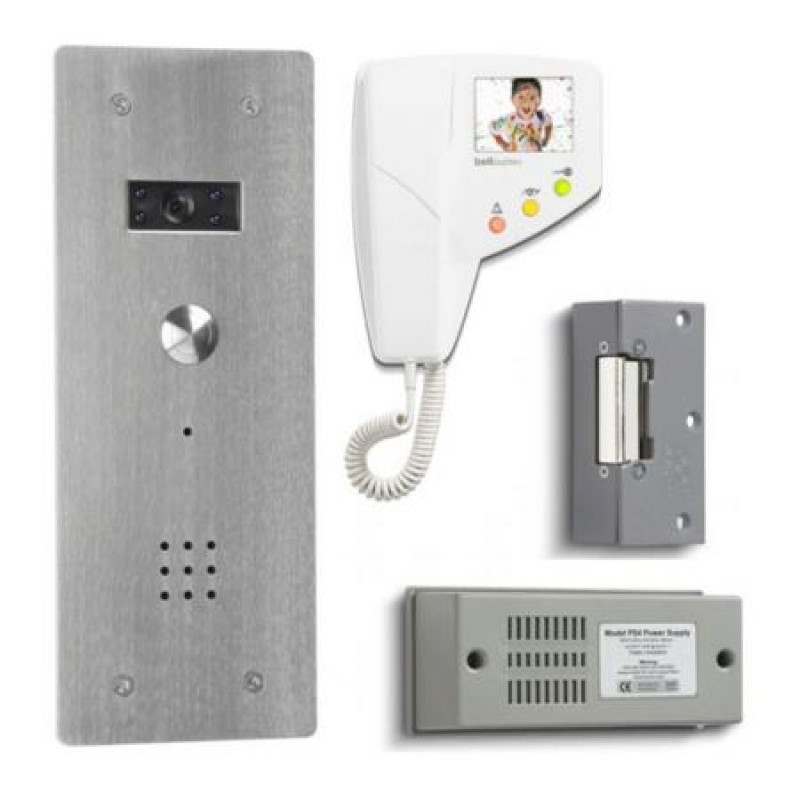

Kit Includes:

• 1 x BSP1/VR 1 Way flush panel
• 1 x BS Colour video monitor
• 1 x BSD1 Panel controller
• 1 x PS4 Power supply unit
• 1 x 203 Lock release

Note: We have other series available on request 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 18, 19, 20, 21, 22, 23, 24, 25, 26, 28, 29 Stations.

For more details on this product range, including part numbers, please refer to the catalogue or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
