Bell (BL10) 10 Station Bellini Audio Door Entry System

Bell (BL10) 10 Station Bellini Audio Door Entry System

These surface mounted panels are manufactured from anodised aluminium with a contemporary design and profile. The panels have black plastic trims complementing the stylish panel with contrasting chromed pushbuttons and speech grill. Optional nameplate illumination is available. The front panels are hinged from the back box and the hinges can easily be changed from one side to the other to aid their installation in tight locations.

Bellini systems are designed for residential applications such as low-rise apartments and maisonettes, which make them ideal for property and private building sector developers.

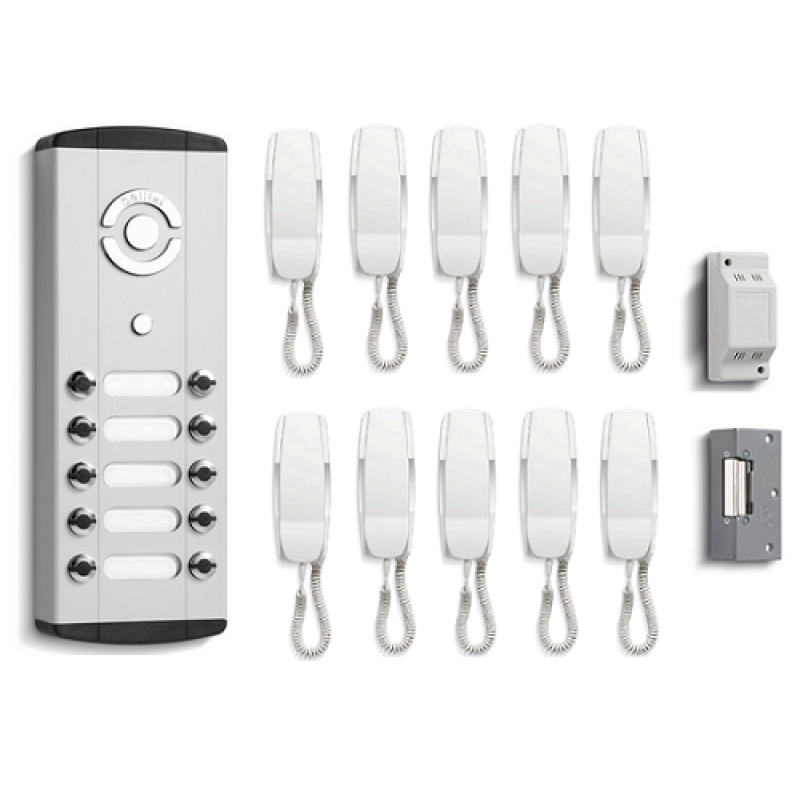

System Includes:

• A Surface Mounting Bellini Panel (10 Button)
• White Wall-Mounting Telephones
• Speech Unit and a Power Supply
• 210 Lock Release Recommended

Available in Sizes 1 To 12 Buttons

1) A Surface Mounting Bellini Panel [285 (H) x 100 (W) x 35 (D)]mm

Bell System is pleased to announce the launch of the new bellini range of door entry surface mounting panels. These new stylish panels can be considered as an elegant alternative to the traditional SPA series of panels. The bellini panels are designed for installations at low-rise apartments, maisonettes and conversions making them an ideal choice for the private building sector and property developers. The range currently includes audio, audio combined with a keypad and video panels.

All panels are manufactured from anodised aluminium in a contemporary design and have black plastic trims with contrasting chromed pushbuttons and speech grill. The front panels are hinged from the back box for ease of installation and the hinges can easily be changed from one side to the other to assist in tight locations

2) White Wall-Mounting Telephones

This telephone still proves to be the most popular in the UK market owing to its exceptional reliability and economical price. Recently the telephone has undergone a re-styling which, whilst maintaining its classic design, will ensure its popularity for many years to come.

The model 801 telephone operates from 12V AC or 12 V DC and is included in the standard model 900 and VRK audio door entry systems.

3) Speech Unit and a Power Supply

Speech Unit Model 61
This compact unit is fitted to the entrance panel on all our current door entry systems(except as indicated below). The unit provides two-way speech and has an individual volume control for both microphone and speaker. This universal product can be powered from either 12V AC or 12V DC depending on the model of telephone used.

Dimensions: H = 97mm, W = 58mm, D = 24mm

Model 212 (12v AC)
A wall-mounting, double insulated, fused transformer included in basic audio door entry systems up to 10 stations. It has a nominal output of 12v AC @ 1Amp. Compliant with EN60950. Dimensions: H = 140mm, W = 60mm, D = 53mm

A fail-secure lock output is available and the model 210 lock release is recommended.
