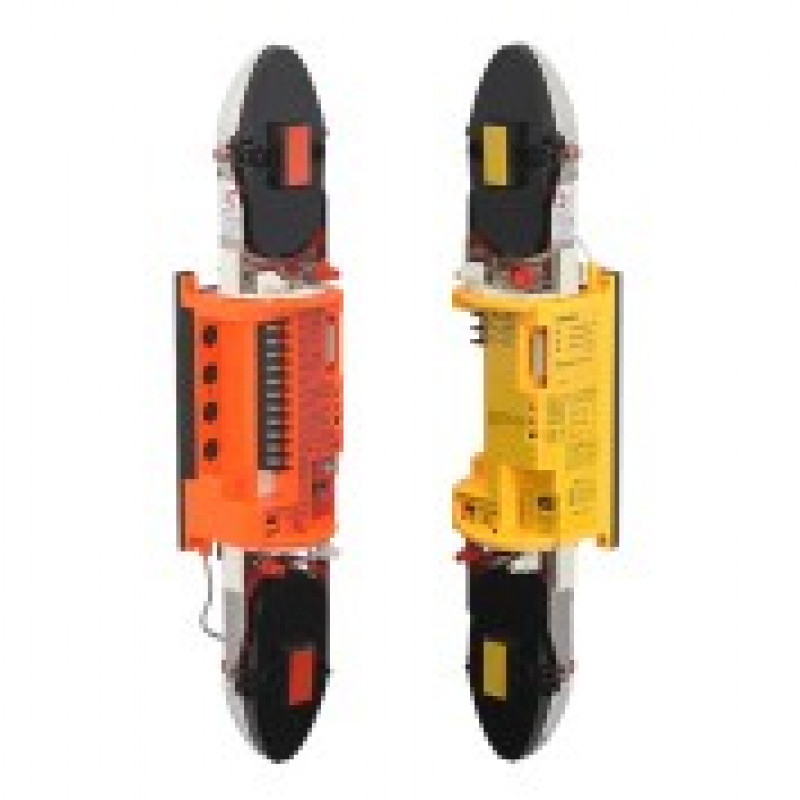

PXB-50HF-KH, Up to 50m External / 100m Internal Quad Beam (4-Channel)
- Brand:Takex
- Product Code:PXB-50HF-KH
- Availability:Please Call or Email Us to Check Availability
PXB-50HF-KH, Up to 50m External / 100m Internal Quad Beam (4-Channel)
PXB-HF-KH Series Beams are designed specifically for use in our TA Series Tower Enclosures.
Features
- 4 x synchronised high power beams
- specifically designed for use in TA series Tower Enclosures
- double coated electronics for demanding environments
- 4 selectable beam channels to prevent crosstalk
- double modulation for unsurpassed light immunity
- increased beam separation minimises nuisance alarms
- vivid internal colour aids beam alignment procedure
- lightning and surge protection up to 15kV
- environmental monitoring circuit
- dynamic auto-gain lock (AGL)
- 50,000 lux sunlight immunity
Specification:
| Model | PXB-50HF-KH | PXB-100HF-KH | PXB-200HF-KH |
| Detection system | Near infrared pulse beam interruption system (TX/RX 4 beam simultaneous interruption) |
||
| Infrared beam | Double modulation pulsed beam by LED | ||
| Protection distance | Outdoor 50m or less Indoor 100m or less |
Outdoor 100m or less Indoor 200m or less |
Outdoor 200m or less Indoor 400m or less |
| Max. beam range (approx.) | 500m | 1000m | 2000m |
| Response time | 0.05 sec. to 0.7 sec. (Variable at pot) | ||
| Supply voltage | 12V to 30VDC (Non-polarity) | ||
| Current consumption | 30mA or less | 32mA or less | 34mA or less |
| Alarm output | Dry contact relay output form C Contact action : Interruption time + delay time (2 sec.) Contact capacity : 30V (AC/DC) 1A (resistive load) Protective resistor |
||
| Environmental output | Dry contact relay output form C Contact action : Output when environmental conditions worsen Contact capacity : 30V (AC/DC) 1A (resistive load) Protective resistor |
||
| Alarm LED | Red LED (Receiver) ON : when an alarm is initiated |
||
| Attenuation LED | Red LED (Receiver) ON : when beam reception is attenuated |
||
| Ambient temperature range | - 35°C to +66°C | ||
| Beam adjustment | Horizontal : ±90°, Vertical : ±20° | ||
| Functions | Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Transmitting power adjustment, Alarm memory indication, Programmed AGC, Auto-gain lock function, Monitor Jack, Response time adjustment, Upper/Lower beam switch, Wireless checker | ||
| Mounting positions | Outdoor / Indoor | ||
| Wiring | Terminals | ||
The specifications are subject to change without notice.
For more details, please check with our attached manual.
