DA1101-EX-1-G, 1.2Ah 1 x 30W GB PoE+ Injector and 5-Port GB Switch

Dantech, DA1101-EX-1-G, 1.2Ah MultispanUPS 1 x 30W Gigabit PoE+ Injector & 5-Port Gigabit Switch

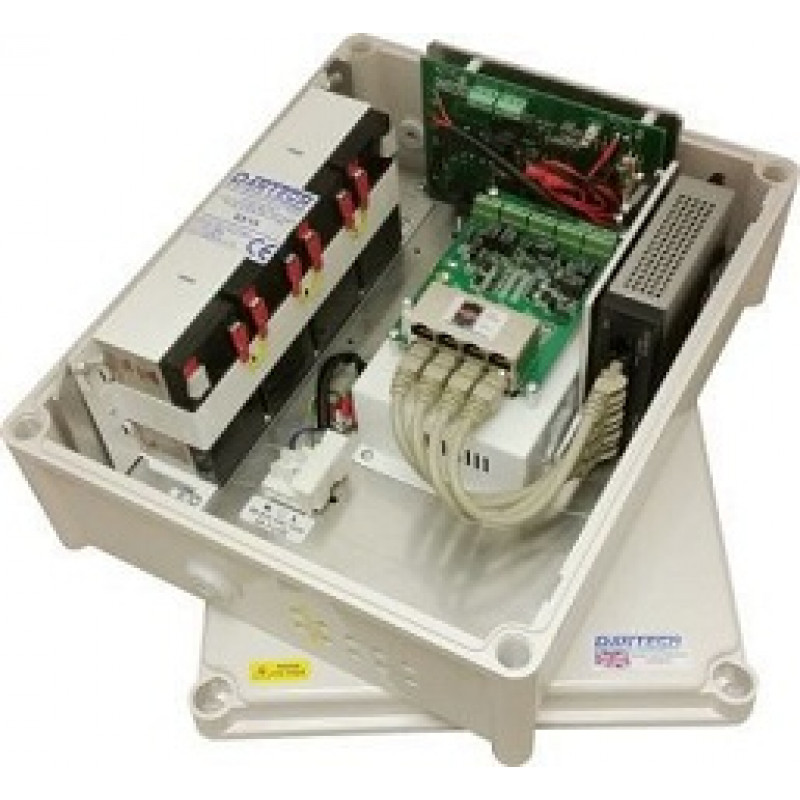

A power over Ethernet Multispan power supply with secure enclosure and monitoring. Every SecurePoE unit complies with the IEEE 802.3:2012 standard (IEEE 802.3at/IEEE 802.3af). SecurePoE units will provide the full 30W of power to every port. All units are housed in secure tamper protected cases.

The PoE outputs have LED indication to show if a compatible device is connected and powered. In addition there are SPCO clean contacts for monitoring the power status of each output.

PoE Multispan devices combine the reliability of a midspan with the ease of an endspan unit, while adding security and installation flexibility.

The pre-patched network switch allows one data connection (e.g. from network) to be connected to up to 4 PoE powered devices.

Multispan units can be located 100 meters away from existing network infrastructure and attached devices can be a further 100 meters, giving 200m connectivity potential.

Key Features:

• Integrated 5-Port Gigabit network switch for 10/100/1000Mbs
• PoE+ power injector with 1 output ports
• 30W of load power availability per port, to IEEE 802.3:2012
• 90-270V AC, 47-63Hz universal mains input
• Ultra high efficiency operation - up to 96%
• (tested with 120W load)
• Safe power supply design
• System power status LED & monitoring contacts
• Individual port power status LEDs and monitoring contacts
• Monitoring relay contacts can be used for analogue or network interface
• (e.g. AVIs, alarm logs, device alarm inputs; or triggering ancillary equipment)
• Innovative fast entry cable system
• Additional cable entry knock-outs
• Secure weather resistant enclosure
• Lid tamper switch
• Automatic load class detection
• Designed for ease of fitting and high reliability

Battery Pack Features:

• Customised Yuasa battery pack included
• Battery packs are fast-fit and replaceable
• 7Ah & 10Ah battery packs feature carry handles
• Automatic battery low voltage deep discharge protection
• Mains fail and low battery relay monitoring contacts
• Guaranteed replacement battery pack availability
• Battery maintains both PoE+ power and network switch

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
