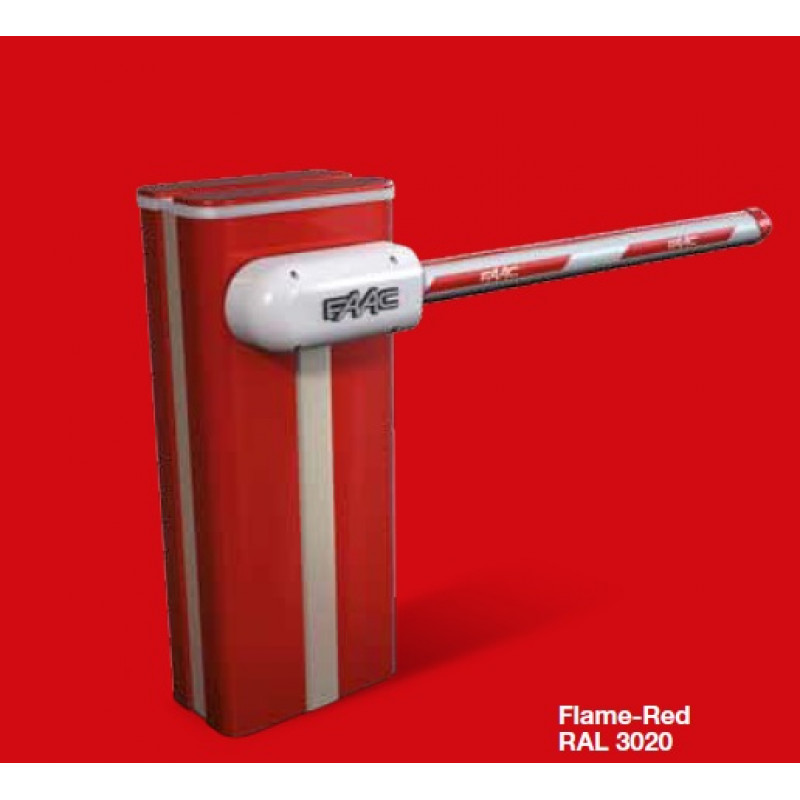

FAAC (416016) B680 Cover RAL3020 RED Housing

FAAC (416016) B680 Cover RAL3020 RED Housing

The housing is non load-bearing and may be easily replaced, with the upright post remaining in place. It is available in stainless-steel or steel versions, with the innovative, 100-micron, epoxy zinc primer anti-corrosion treatment, with four colours available.

Easy to assemble: once the upright has been fitted, with the pocket and the beam, the housing simply needs to be lowered onto it and fixed to the base. If the housing should ever need replacing, simply remove the fixing bolts and pull it up, with no need to dismantle the entire barrier

Dimensions and Technical Specifications:

• Power supply: 100 ÷ 240 Vac 50 (60) Hz
• Electric Motor: 36 Vdc Brushless
• Absorbed power: 240 W
• Absorbed current: 1.1 A/230 V
• Motor rotation speed: 1.000 ÷ 6.000 rpm
• Pump capacity: 3.2 l/min (max)
• Electronic deceleration: Absolute encoder
• Operating ambient temperature: -20°C ÷ +55°C
• Weight: 85 kg (65 kg body + 20 kg compartment)
• Oil type: FAAC HP OIL
• Barrier body treatment: Epoxy zinc anti-corrosion treatment 100 microns + paint
• Protection class: IP44
• Beam type: Rounded or elliptical with lights and rubber bumper
• Dimensions (LxHxD) (mm): 469x279x1100 (see illustration)

PRODUCT VARIANT ALSO AVAILABLE ON REQUEST
