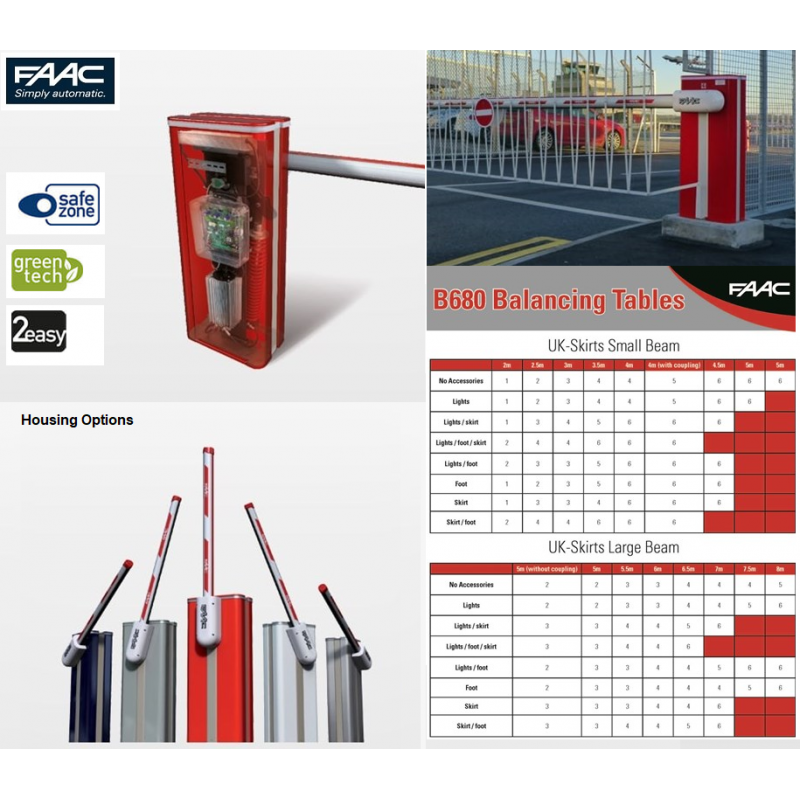

FAAC (104680) B680 Automatic Barrier, 24V, Opens 1.5sec (2m beam) to 6sec (8m beam)
- Brand:FAAC
- Product Code:104680
- Availability:Please Call or Email Us to Check Availability
FAAC (104680) B680 Automatic Barrier, 24V, Opens 1.5sec (2m beam) to 6sec (8m beam)
Key Features:
- 24V barriers that can operate beams up to 8.3m
- Barrier with unlimited springs:over 2,000,000 continuous use cycles without special maintenance
- Fast opening speed (selectable electronically): from 1.5 seconds for 2m gateways
- Extreme logistics optimisation:only one barrier model and two springs for sectional beams measuring 2 to 8.3m
- Removable case available in 4 colours or stainless steel
- Integrated encoder (with reverse in the event of an obstacle)
- Integrated control board, with 2 integrated loop detectors
- Modular beams
- Adjustable speed
- Single version for left and right handed versions
- Body and beam LED lights
- Compatible with 620 and 640 baseplate (retrofit)
Technical Specification:
| Max Beam Length |
8m |
| Voltage |
24V |
| Application |
Industrial |
| Approx opening time |
Adjustable from 1.5sec (2m beam) to 6sec (8m beam) |
| Use frequency |
Continuous |
| Power Consumption |
240W |
| Special features |
Includes dual channel loop detector |
PRODUCT VARIANT ALSO AVAILABLE ON REQUEST
| B680S2MKIT | B680 S 2m Kit |
| B680S3MKIT | B680 S 3m Kit |
| B680S4MKIT | B680 S 4m kit |
| B680S5MKIT | B680 S 5m kit |
| B680L5MKIT | B680 L 5m kit |
| B680L6MKIT | B680 L 6m kit |
| B680L7MKIT | B680 L 7m kit |
| B680L8MKIT | B680 L 8m kit |
For more details on this product range, including part numbers, please refer to the catalogue or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
