Videx, VR4K-3S/CL, 3 Way 4000 Series Surface Audio Entry Kit with Codelock

Videx, VR4K-3S/CL, 3 Way 4000 Series Surface Audio Entry Kit with Codelock

Vandal resistant audio entry kit based on the 4000 Series modular design incorporating two way speech, electronic call tone and lock release facility. The vandal resistant door station is available surface or flush mounting with up to 12 call buttons. Engraving of up to 2 characters per button is included. A coded keypad for up to 2 8 digit codes is also included. The finish is a 12 gauge stainless steel with gun metal grey surround. Three Led's give confirmation of call, busy and lock release.

The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional handsets can be connected in each apartment. These telephones can be desk mounted with the addition of a 3038A desk kit.

A codelock can be added (/CL). The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output.

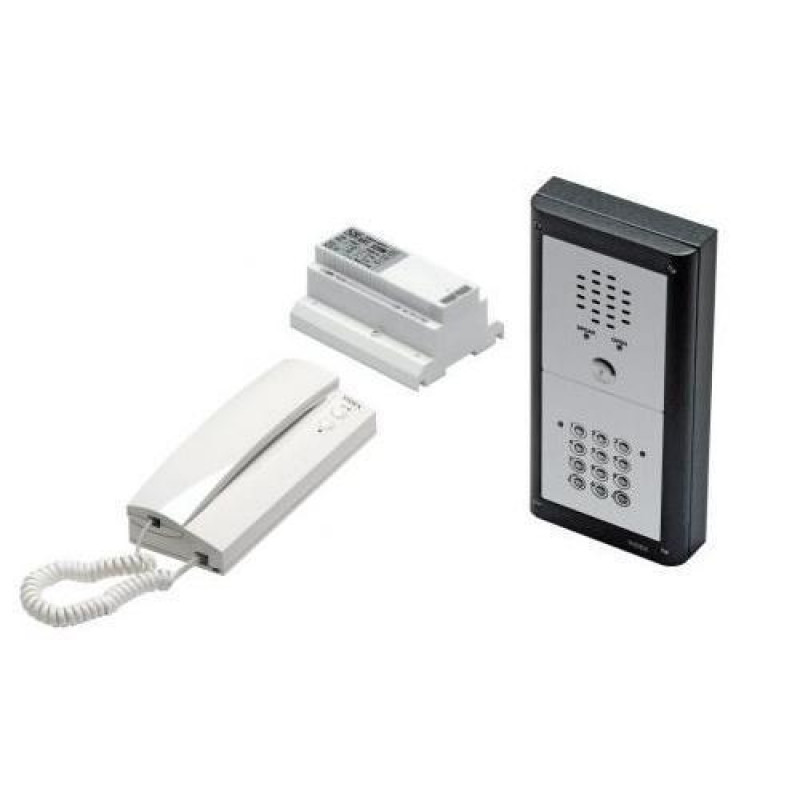

Kit Includes:

3111: 3000 series style audiophone : Videx 3111 audio handset comes with an adjustable electronic call tone (3 levels), door lock release and one service button, which can be programmed to activate gates, lights or an electric lock.

520M (13Vac/8-12vdc) power supply: The DIN box wall mountable regulated power supply by Videx is for use with audio entrance panels, and uses 4+n and 3+n wiring.

Specifications:

• Recommended cable type - CW1308
• Maximum No. Of telephones per call button - 3
• Lock output - Dry contact (C NO NC)
• Lock time - 1-99 seconds or latching
• Telephone model - 3111 (call tone)
• PSU model - 520 (13Vac for lock release, 12Vdc)
• Amplifier module - VX136
• Codelock module - VR4KCLM
• Number of codes - 2
• Code length - 4-8
