Videx, VR120DK-9/CL, 9 Way Vandal Resistant Fush Mounted Door Entry Kit with Code Lock

Videx, VR120DK-9/CL, 9 Way Vandal Resistant Fush Mounted Door Entry Kit with Code Lock

9 button vandal resistant flush mounted door entry kits with codelock.  Comprises door panel, handsets and psu.

VR120 audio kit door panels (120mm wide) have Call Progress LED's for "Speak", "Door Open" and "Busy" along with distinct audio reassurance tones to assist the vistor.  Buttons are IP68 rated with the option of a yellow bezel offering a high contrast to the fascia for DDA (Disability Discrimination Act) requirements.

Face plates may be engraved to identify each button (includes 2 characters per button as standard)

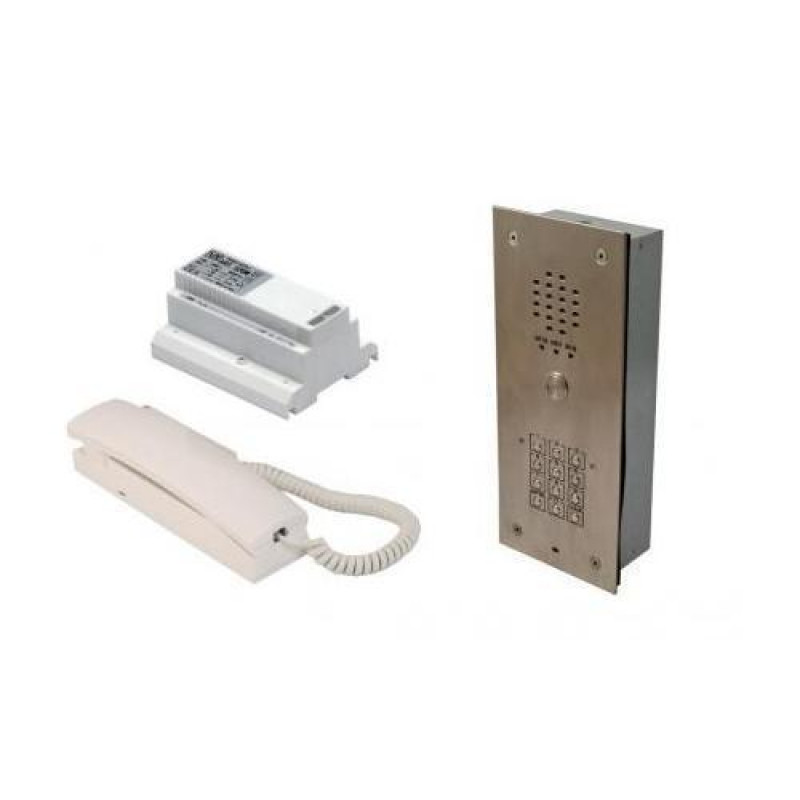

Kit Includes:

1) Door Panel:

12 Gauge stainless steel flush mounting
Contains Art.136 speaker unit: The 136 speaker unit is an intelligent device with a built-in microprocessor to control the functions of a system.. This speaker unit offers ease of installation (on audio door entry systems with multiple entrances there are no audio entrance

Power supply: 12Vdc (150mA)

Codelock: 2 code, 2 relay

2) Handsets: Art.3011 wall mountable slimline call tone telephone

3) Power Supply Unit:

Art.520M is a regulated power supply with mains voltage 230Vac 50/60Hz and outputs 12Vdc, 8Vdc and 13Vac.
Input: 230Vac
Output: 12Vdc (Max 200mA), 8Vdc (Max 200mA), 13Vac (Max 1A)

Face plates may be engraved to identify each button (includes 2 characters per button as standard).
