Videx, 8K-3S/CL, 3 Way 8000 Series Audio Door Entry Kit - Surface Mount with Code Lock
- Brand:Videx
- Product Code:8K-3S/CL
- Availability:Please Call or Email Us to Check Availability
Your shopping cart is empty!
Videx, 8K-3S/CL, 3 Way 8000 Series Audio Door Entry Kit - Surface Mount with Code Lock

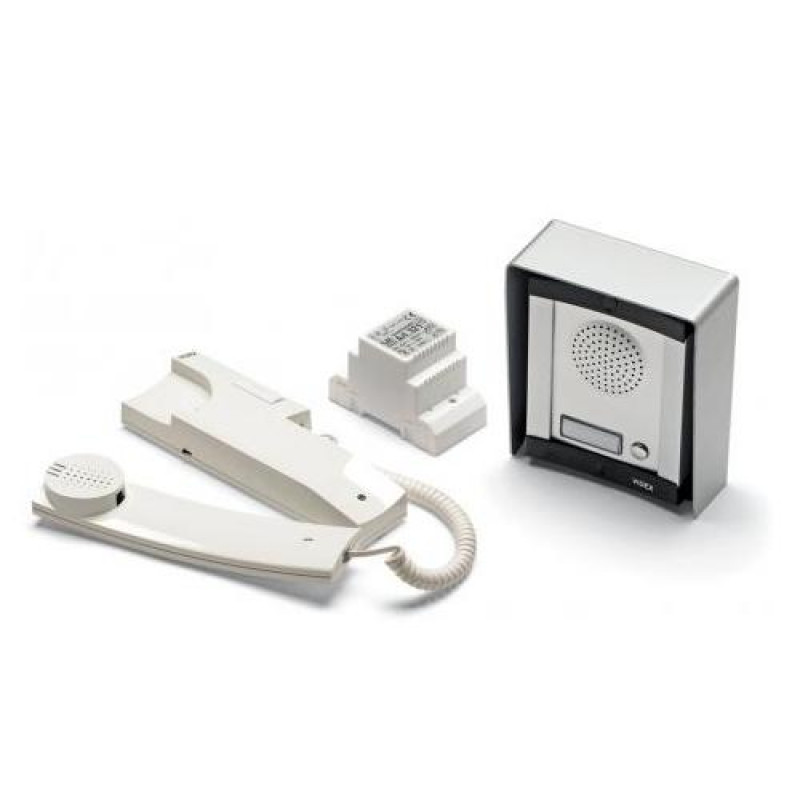

8000 Series audio entry kit with 2 code, 2 relay coded access keypad and 1 call button with back lit name plate. Features include electronic call tone and timed door release (1-99 seconds or latching). The kit comprises an entry panel with either surface or flush frame available in aluminium or black (/BL), a telephone and AC PSU. The telephone includes a three position volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. The programming of access codes is carried out using the codelocks keypad, codes can be 4-8 digits.
8000 Series Audiokit:
The circuitry of the outdoor stations provided with these kits, has a built-in lock relay to enable the electric lock. This reduces the cable requirements to only 4 (“3+1”) between the outdoor station and the intercom. This reduced cable requirement allows longer cable runs and reduced cable sizes to be used between the two units.
The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output. Comes with 3000 series style audiophone.
Three button door entry kit comprised of:
Specifications:
