Videx, 8K-1S/CL, 1 Way 8000 Series Audio Door Entr Kit Surface Mount with Code Lock
- Brand:Videx
- Product Code:8K-1S/CL
- Availability:Please Call or Email Us to Check Availability
Videx, 8K-1S/CL, 1 Way 8000 Series Audio Door Entr Kit Surface Mount with Code Lock
8000 Series audio entry kit with 2 code, 2 relay coded access keypad and 1 call button with back lit name plate. Features include electronic call tone and timed door release (1-99 seconds or latching). The kit comprises an entry panel with either surface or flush frame available in aluminium or black (/BL), a telephone and AC PSU. The telephone includes a three position volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. The programming of access codes is carried out using the codelocks keypad, codes can be 4-8 digits.
8000 Series audio entry kit with 2 code, 2 relay coded access keypad and 1 call button with back lit name plate. Features include electronic call tone and timed door release (1-99 seconds or latching). The kit comprises an entry panel with either surface or flush frame available in aluminium or black (/BL), a telephone and AC PSU. The telephone includes a three position volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. The programming of access codes is carried out using the codelocks keypad, codes can be 4-8 digits - See more at: http://www.videx-security.com/products/kit-range/audio-kits/8000-series-audio-kits/8000-series-digi-kit/#sthash.vBPnzBcD.dpuf
8000 Series Audiokit:
The circuitry of the outdoor stations provided with these kits, has a built-in lock relay to enable the electric lock. This reduces the cable requirements to only 4 (“3+1”) between the outdoor station and the intercom. This reduced cable requirement allows longer cable runs and reduced cable sizes to be used between the two units.

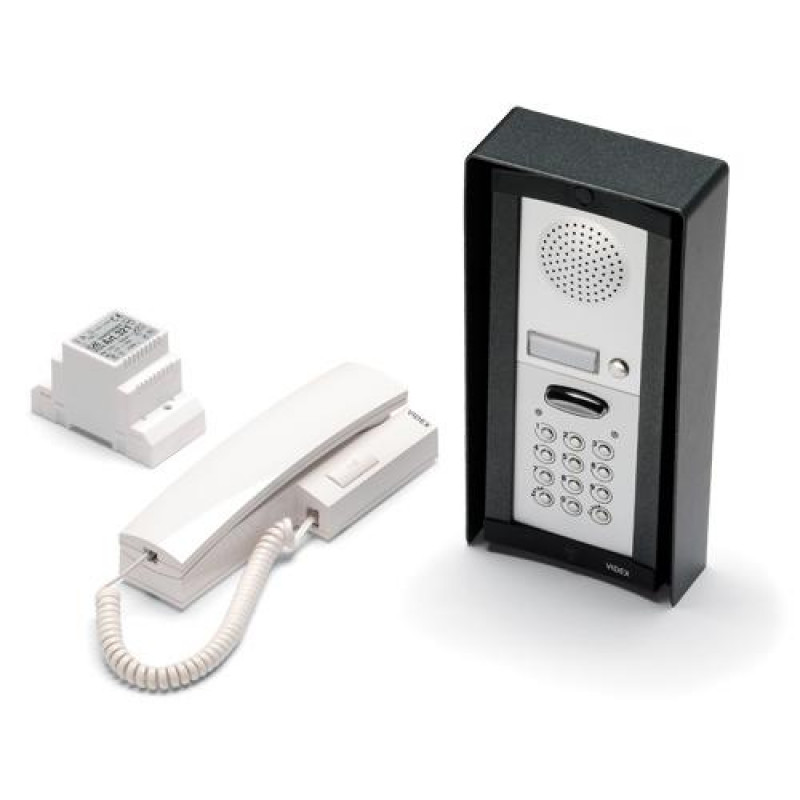

One button door entry kit comprised of:
- Outdoor station including One call button speaker unit Art.8836M-1, flush mounting box with module support and hinge
- Art.8851 plus covering frame Art.8861. Standard finishes: mirror stainless steel for the front plate and aluminium for the module support.
- Art.3011 3000 Series Smart Line wall mount telephone with “door open” push button and electronic call tone with adjustable volume on 3 levels.
- Art.321 Power Supply in a type A 3 module DIN box.
- Art.8881 surface mounting box
The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output. Comes with 3000 series style audiophone.
Specifications:
- Number of entrances: 1
- No. Of cores to telephone: 4
- Recommended cable type: CW1308
- Maximum No. Of telephones per call button: 3
- Lock output: 12Vac
- Telephone model: 3011 (call tone)
- PSU model: 321 (13Vac)
- Amplifier module: 8836M
- Codelock module: 8800
- Number of codes: 2
- Code length: 4-8
