Videx, 4K-1S/CL, 1 Way Stainless Steel Surface Mount Audio Kit with Codelock

Videx, 4K-1S/CL, 1 Way Stainless Steel Surface Mount Audio Kit with Codelock

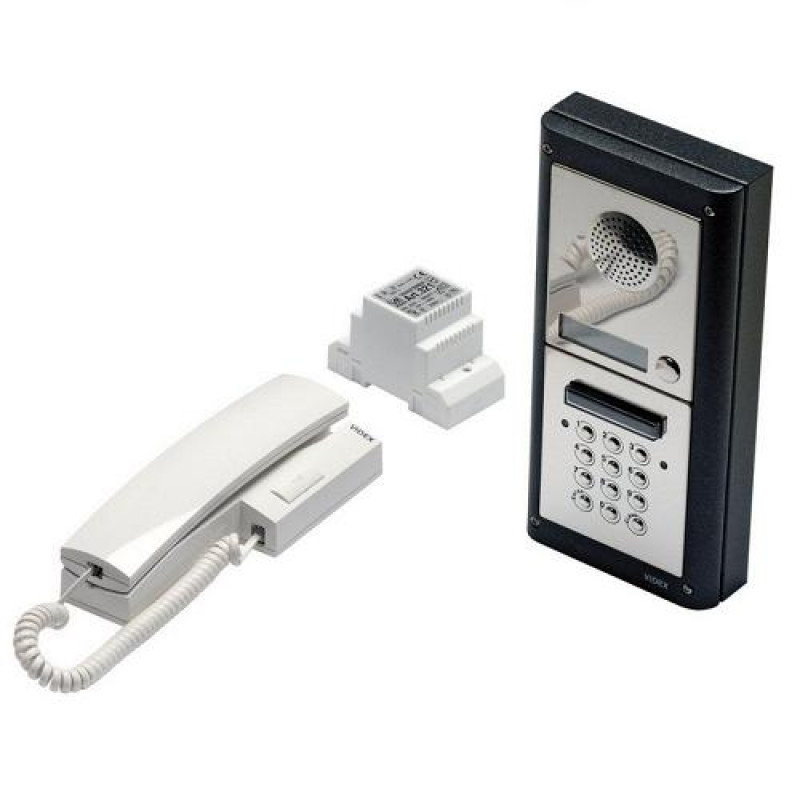

4000 Series audio entry kit with 3 code, 3 relay coded access keypad and 1 call button with back lit name plate. Features include electronic call tone and timed door release (1-99 seconds or latching).

The kit comprise of:

• An entry panel with either surface or flush frame available in gun metal grey Chrome(/C) or gold(/G)
• A Telephone
• AC PSU

1) Panel: Panel also includes speak, busy and open LED's for call progressing information.

2) Telephone: The telephone includes a three position volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. The programming of access codes is carried out using the codelocks keypad, codes can be 4-8 digits.Series Smart Line wall mount telephone with “door open” push button and electronic call tone with 3 level djustable volume control.

3) Power Supply: Power Supply in a type A 3 module DIN box.

Specifications:

• Number of entrances - 1
• No. Of cores to telephone - 4
• Recommended cable type - CW1308
• Maximum No. Of telephones per call button - 3
• Lock output - Dry contact (C NO NC)
• Lock time - 1-99 seconds or latching
• Telephone model - 3011 (call tone)
• PSU model - 321 (13Vac)
• Amplifier module - 4836
• Codelock module - 8800 (PTX input X2)
• Number of codes - 3
• Code length - 4-8
