Videx, 4K-12/CL, 12 Way Stainless Steel Flush Mount Audio Kit with Codelock

Videx, 4K-12/CL, 12 Way Stainless Steel Flush Mount Audio Kit with Codelock

  • Brand:Videx
  • Product Code:4K-12/CL
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Videx, 4K-12/CL, 12 Way Stainless Steel Flush Mount Audio Kit with Codelock

Audio entry kit based on the 4000 Series modular design incorporating two way speech, electronic call tone and lock release facility. The door station is available surface or flush mounting with up to 12 call buttons each with a back lit name plate. The standard finish is a stainless steel facia with gun metal grey surround. An aluminium facia (/A) and a chrome (/C) or gold (/G) surround are also available. The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional handsets can be connected in each apartment.

A codelock can be added (/CL). The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output.

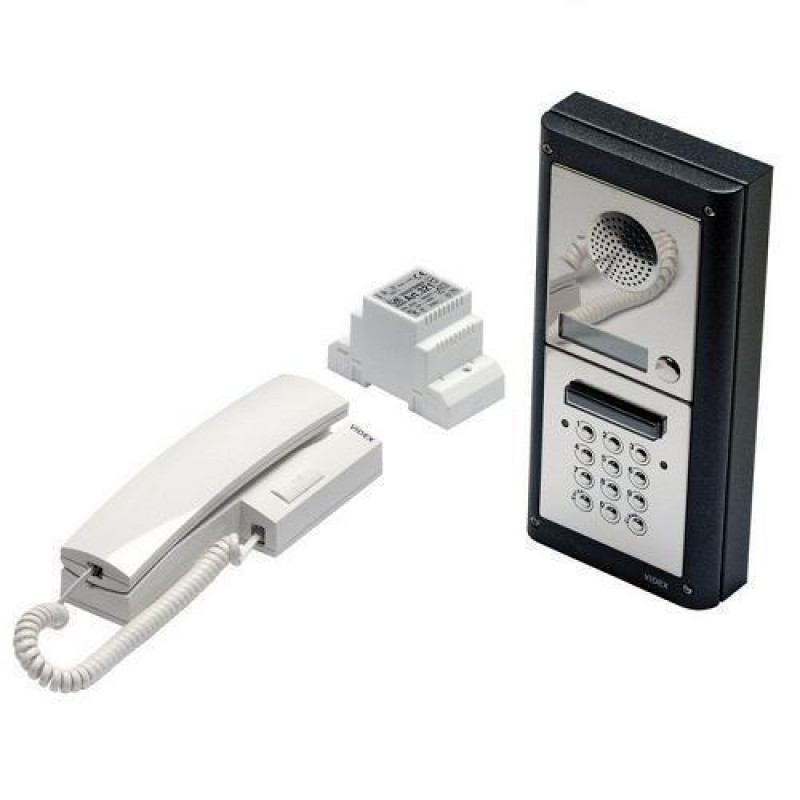

The kit comprise of:

  • An entry panel with either surface or flush frame available in gun metal grey Chrome(/C) or gold(/G)
  • A Telephone
  • AC PSU

1) Panel: Panel also includes speak, busy and open LED's for call progressing information.

2) Telephone: The telephone includes a three position volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. The programming of access codes is carried out using the codelocks keypad, codes can be 4-8 digits.Series Smart Line wall mount telephone with “door open” push button and electronic call tone with 3 level djustable volume control.

3) Power Supply: Power Supply in a type A 3 module DIN box.

Specifications:

  • No. Of cores to telephone - 4
  • Recommended cable type - CW1308
  • Maximum No. Of telephones per call button - 3
  • Lock output - Dry contact (C NO)
  • Telephone model - 3011 (call tone)
  • PSU model - 321 (13Vac)
  • Amplifier module - 4836
