Dantech, DA340, 12VDC Set/Unset Indicator - ABS Cased

Dantech, DA340, 12VDC Set/Unset Indicator - ABS Cased

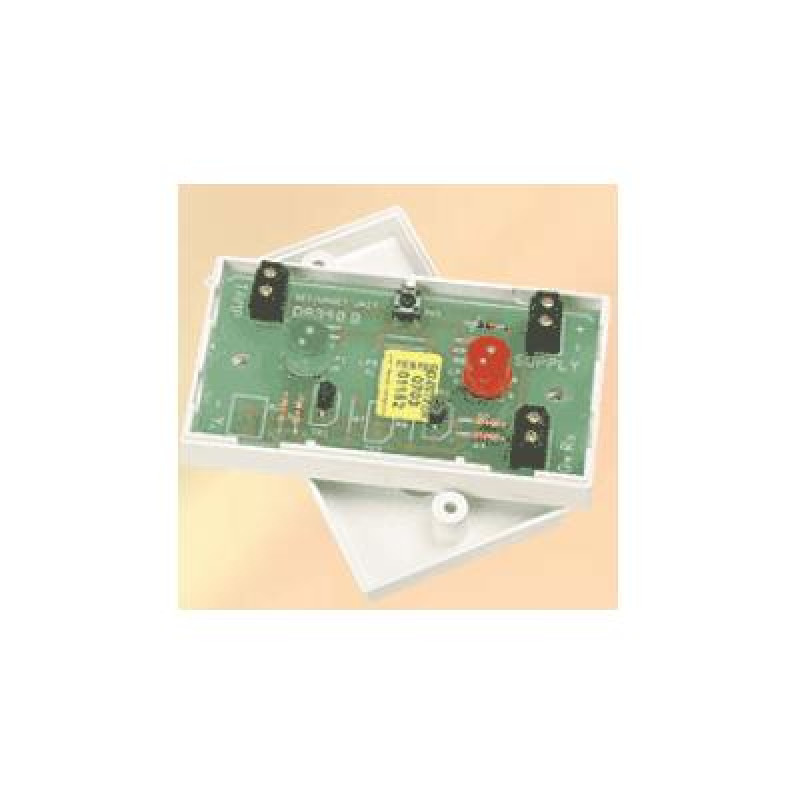

Set/Unset Indicator. A unit designed to give remote indication of system set/unset using two ‘Jumbo’ LED’s (10mm) one red and one green with a low current input to switch each LED (<1mA). 12V DC operation. ABS Cased. This unit is also available in a ‘Traffic Light’ format that has a third amber LED in the centre.

All metal cases are finished in a white gloss powder coating. All plastic cases are white ABS.

Specifications:

• Supply Voltage - 12V DC
• Current Consumption - 30mA
• Built In Battery - No
• Trigger Input - DC +ve
• Tamper Case - YES
• Weight (kg) - 0.050
• Dimensions W x H x D - 90 x 50 x 20

For more details, please refer with our attached datasheet.
