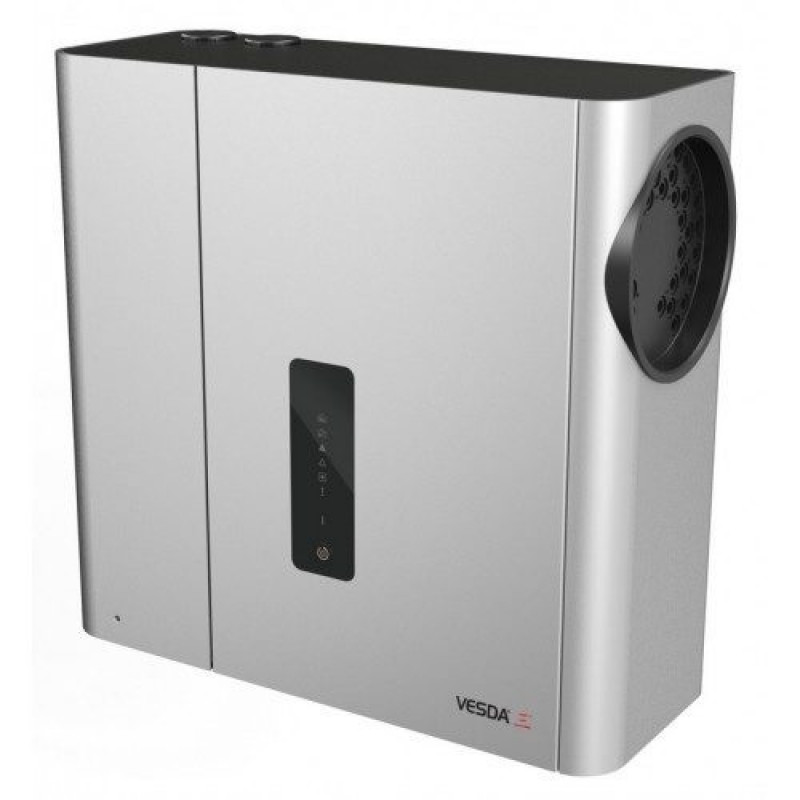

VEA-040-A00, VESDA-E VEA-40 Aspirating Smoke Detector with LED

VEA-040-A00, VESDA-E VEA-40 Aspirating Smoke Detector with LED

VEA combines VESDA reliability & early warning smoke detection with pinpoint addressability. VEA uses patented multi-channel microbore tubes & patented air-sampling points with three sensitivity settings. VEA divides a protected space into sampling locations, to pinpoint threats for faster response.

Features include field programmability, enhanced connectivity, and centralized test & maintenance to provide reduced total cost of ownership. VEA has a IP40-rated enclosure & is equipped with a powerful pump, providing up to 100 m (328 ft) microbore tube lengths.

Using VSC for commissioning, a normalization process establishes flow performance parameters. Local smoke test ports are used during servicing to verify that the system is fully operational. Field replaceable components such as filter, smoke smoke sensor module, and pump & rotary valve result in less down time and ease of maintenance.

Key Features:

• Pinpoint addressability
• 40 addressable microbore tubes with individual sampling points
• Assured detection with end to end system integrity monitoring
• Interruption-free business operation with centralised testing and maintenance
• Single sampling point or single tube blockage detection at set intervals
• Automatic sampling point presence and tube breakage detection at set intervals
• Automatic sampling point cleaning at set intervals
• Three sensitivity settings for the sampling points
• Variable length capillary tubes, up to 100 m (328 ft)
• Laser-based absolute smoke detection
• Coarse particle filtering and clean air barrier for optics protection
• Reliable linear pump technology
• LEDs for alarm and fault signalling
• 3.5” colour touch screen for status review
• Seven programmable relays
• Two GPIs, monitored and unmonitored
• Xtralis VSC and VSM4 PC software support
• iVESDA application for system monitoring on mobile devices
• IP 40 enclosure (not UL tested)
• Easy mounting with steel support bracket
• Field replaceable filter, smoke sensor module, pump and rotary valve
• VESDAnet networking
• Ethernet 100BASE-T
• WiFi, 802.11 b/g/n
• Local host-mode USB port
• Easy cable termination access
• Event Log (20,000 events)

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
