VSP-877, VESDA Flush Sampling Point
- Brand:Eurofyre
- Product Code:VSP-877
- Availability:Please Call or Email Us to Check Availability

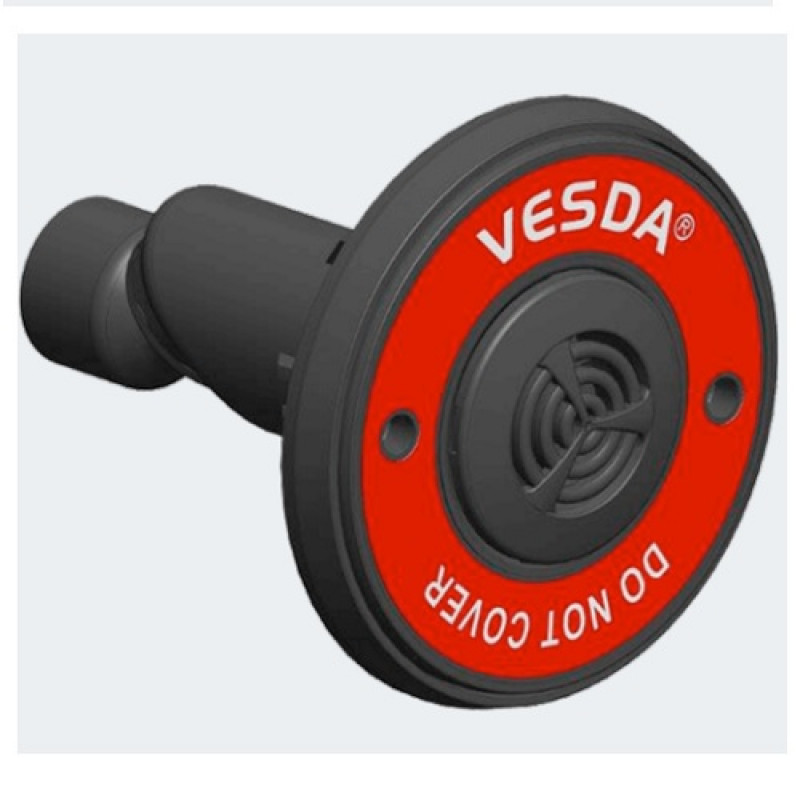

VSP-877, VESDA Flush Sampling Point
The Flush Mount Sampling Point (patent pending) provides a functionally and aesthetically improved alternative to the conical sampling point used in Xtralis Aspirating Smoke Detection (ASD) pipe networks.
Key Features:
- Suitable for all Xtralis Aspirating Smoke Detectors providing a standard solution
- Unique wing-lock arrangement permits installation from bottom side of ceiling which is ideal for fixed ceilings where access to the other side would be difficult or otherwise impossible
- Adjustable wing-lock height to accommodate different ceiling panel thicknesses
- Incorporates text compliant with codes and standards
- Designed for secure connection through push fit
- Accommodates several capillary tube sizes including 6 mm, 8 mm, 10 mm and ½” to suit various regional requirements
- Accommodates an optional Push-in Connect Adaptor for the Americas, ½” capillary tubing for increased robustness
- Flush mount design provides less obtrusive installation and improved aesthetics
- Standard 2 mm (5/64”) pilot sampling hole which can be drilled out up to 5 mm (13/64”) as per system design calculations
- Tapered sampling hole helps resist clogging
- Snap-fit fascia conceals sampling hole which is easily removable to permit cleaning if required
- RoHS/REACH compliant
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
