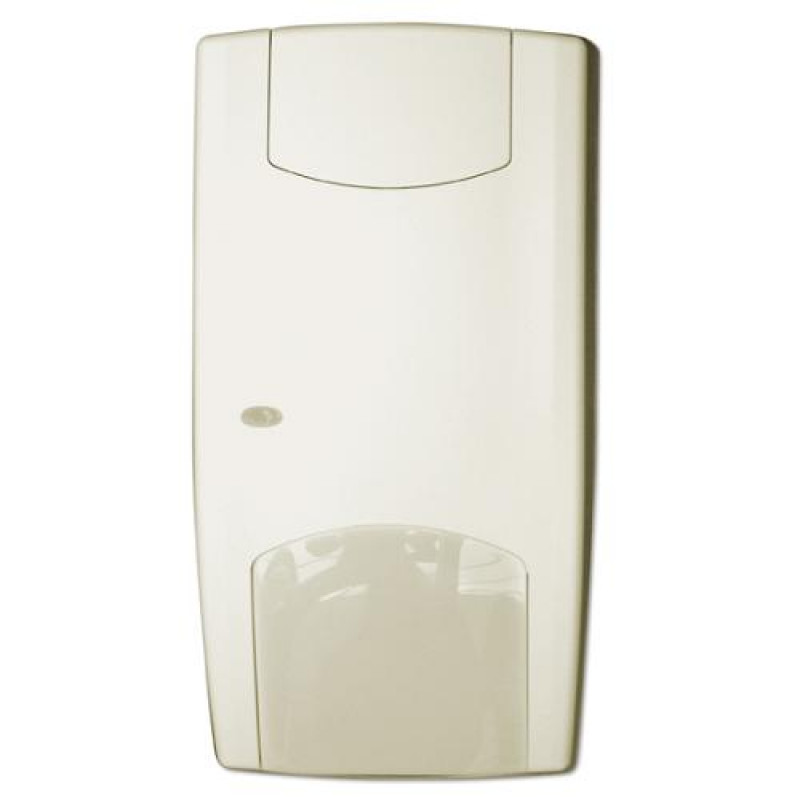

Aritech, VE1120-D, 20m PIR Wide Angle Motion Detector (11 Curtains)
Motion sensors from GE have the most advanced mirror optics in the security industry. This unique optical mirror technology uses a combined step and gliding focussing mirror, which provides the sensor with a continuous detection curtain, which allows detection of an object without interruption. To increase the detection density, sensors of the 1100 series use a '' 3-step gliding focus '' mirror optic, which generates 11 continuous detection probes, which detect infrared signals up to a distance of 20 m.
Key Features:
- Passive infrared motion detector
- 3-Step Gliding Focus Curtain Mirror
- Plug-in electronics
- Sealed optics
- '' V2E '' Signal evaluation to avoid false alarms
- Detection by coat and umbrella
- Full creep protection
- Selectable detection range by mirror block
- Autofocus with constant range sensitivity
- No adjustment required for different mounting heights
- Scattered angular deviations of walls
- EN50131-2-2 Grade 2 certified
- Different European approvals applied for
- VdS approval: G110507 Class B
Technical Specification:
- Detection range : 20 m (65 ft)
- Anti-creep protection : Yes
- Sensitivity : Normal / High
- Coverage area : 86 ° with 11 curtains
- Selection of the detection area : Curtain Adhesive Foils
- Mounting height : 1.8 to 3.0 m ((6 to 10 ft)
- Power supply : 9 to 15 VDC
- Power consumption (nom.) : 4.4 mA
- Alarm relay (potential-free) : NC when energized
- Sabotagerelais (potential free) : NC when housing is closed
- External control inputs : Go
- Alarm memory : Yes
- PIR signal evaluation : V2E
- Dimensions (W x H x D) : 125 x 65 x 60 mm
- Environmental conditions : -10 to + 55 ° C (14 to 130 ° F); 95% relative humidity
- Tear-off contact : Optional
- EN50131-2-2 : Grade 2
- VdS recognition : G 110507
