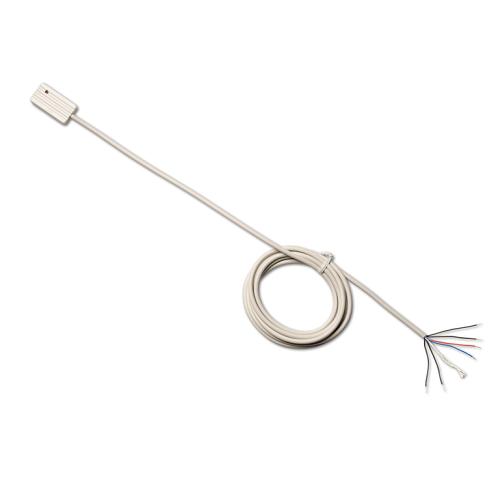

Aritech, GS322, Piezo Glassbreak Detector with Relay Output 20 m
- Brand:UTC (Aritech)
- Product Code:GS322
- Availability:Please Call or Email Us to Check Availability
Aritech, GS322, Piezo Glassbreak Detector with Relay Output 20 m
The glassbreak detector GS322 with relay output is designed to detect the specific ultrasonic frequency range produced by breaking glass. Knocks and other normal disturbances to a window pane do not trigger an alarm. Suitable for use on standard window glass and plate glass up to 2 m radius.
Key Features:
- Small and unobtrusive
- Latching alarm indication
- 2m radius protection
- Easy to install
- No adjustment
- Tamper proof
Technical Specification:
- Power supply : 9 to 18 V
- Max. ripple : 1 V
- Current draw : Normal - about 4mA at 6V / Alarm - 5 mA at 12 VDC
- Alarm output : N/A
- Tamper : Protected against cutting the cable
- Operating temperature : -25 to +70°C
- Detection range : 2 m radius
- Dimensions : 37 x 19 x 12 mm
- Weight : 50 g
- Cable dimensions : 3.8 mm - 20 m
- IP rating : IP67
For more details, please refer with our attached datasheet.
