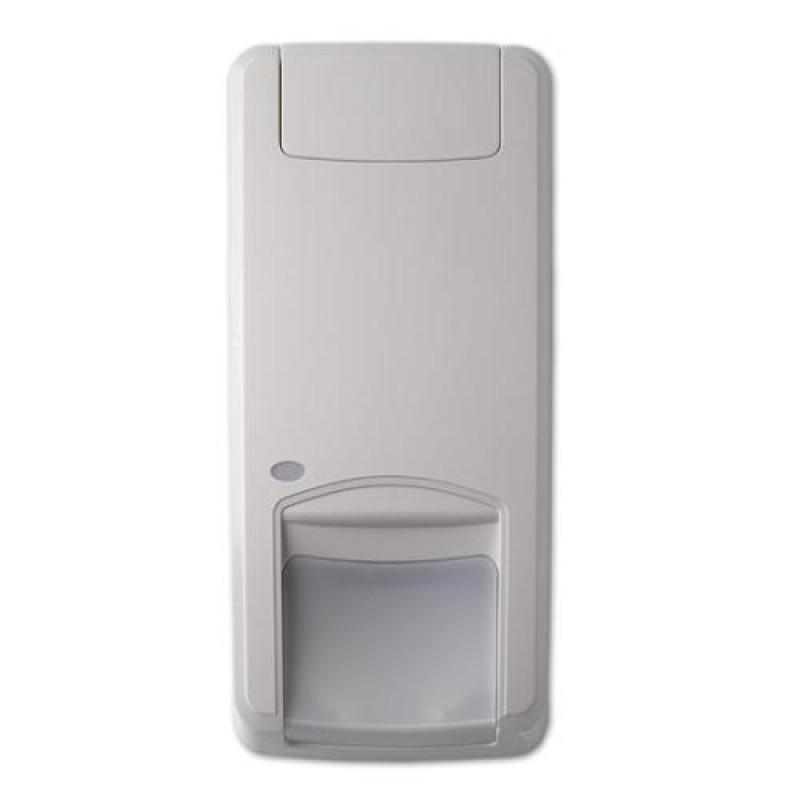

Aritech, DDV1016-D, 16m Dual Technology Detector - 9 Curtains (Grade 2)
- Brand:UTC (Aritech)
- Product Code:DDV1016-D
- Availability:Please Call or Email Us to Check Availability
Aritech, DDV1016-D, 16m Dual Technology Detector - 9 Curtains (Grade 2)
Key Features:
- Patented adjustable range-controlled radar technology precisely defines the radar detection limit
- PIR technology with patented mirror curtain optics
- Intelligent alarm detection based on signal classification of PIR and radar alarms
- Automatic self-diagnosis of all technologies
- Green mode: Option for switching off the radar technology for blurred EMA
- Green mode: Option for switching off the radar technology for blurred EMA
- VdS approval G113517
Technical Specification:
- Detection range : 10, 12, 14, 16 m adjustable by means of DIP switch
- Viewing angle : 78 °
- PIR optics : 9 High-density mirror curtains
- Microwave frequency : 5.8 GHz
- Max. MW transmission power (at 1m) : 0.003 μW / cm²
- Alarm memory : Yes
- Supply voltage : 9 to 15 VDC (12V nominal)
- Peak-to-peak ripple voltage immunity : 2V (at 12VDC)
- Detector start-up time : 60 s
- Power consumption : 5 to 16 mA (8 mA nominal)
- Mounting height : 1.8 to 3.0 m
- Detection speed: 0.2 to 3.0 m/s
- Alarm / sabotage relay characteristic : NC, 80 mA 30 VDC, Form A
- Fault relay characteristic : NC, 80 mA 30 VDC, Form A
- Alarm duration : 3s
- Operating temperature : -10 to + 55°C
- Relative humidity : 95% max. not condensing
- weight : 120 g
- Dimensions (H x W x D) : 126 x 63 x 50 mm
- IP / IK protection class : IP30 IK04
- VdS recognition : G113517 (Class B)
