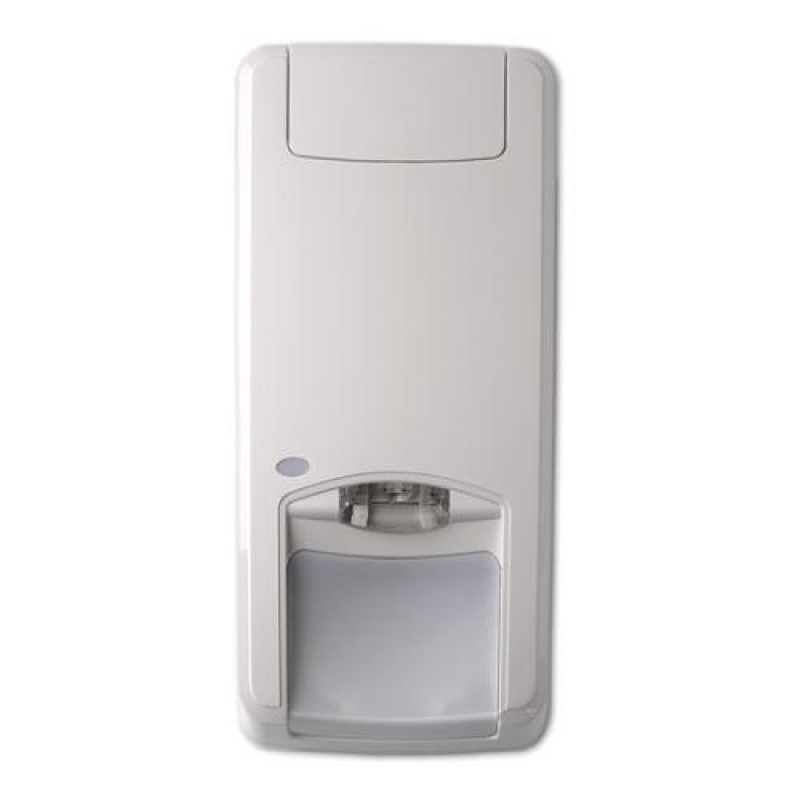

Aritech, DD1012AM-D, 12m Dual Technology AM Detector - 9 Curtains (G-3)

Aritech, DD1012AM-D, 12m Dual Technology AM Detector - 9 Curtains (G-3)

Motion detectors of the DD1000 series feature a unique range-controlled radar technology patented by UTC Fire & Security, which allows the installer to set a clearly defined detection limit for radar technology. The radar is used to determine the distance between the sensor and moving objects. Thus, false alarms can be effectively avoided by movements outside the detection range. Each movement detector has 4 adjustable radar ranges, which can be adapted to the specific local conditions in which the sensor is to be mounted by means of DIP switches. The radar technology uses the 5.8GHz frequency range and does not affect any WIFI networks. The use of active infrared and radar technology results in excellent anti-masking functionality for monitoring the motion detector from inside and outside. The radar verification prevents unintentional AM alarms, eg by insects. In the 'Advanced' setting, an AM alarm is maintained until the effective reason for an anti-masking condition (eg spray, tape, etc.) has been removed. Even partial coverage - beyond the EN Grad III standard - is detected by the detector in the 'Advanced' setting.

Key Features:

• Patented adjustable range-controlled radar technology precisely defines the radar detection limit
• PIR technology with patented mirror curtain optics
• Anti-masking monitoring uses active infrared and radar technology to protect against sabotage actions outside and within the motion detector
• Intelligent alarm detection based on signal classification of PIR and radar alarms
• Automatic self-diagnosis of all technologies
• Green mode: Option for switching off the radar technology for blurred EMA
• Has various safety notices including EN grade III and UL / ULc
• VdS recognition G 113071

Technical Specification:

• Detection range : 4, 6, 9, 12 m adjustable by means of DIP switch
• Viewing angle : 78 °
• PIR optics : 9 High-density mirror curtains
• Microwave frequency : 5.8 GHz
• Max. MW transmission power (at 1m) : 0.003 μW / cm²
• Alarm memory : Yes
• Supply voltage : 9 to 15 VDC (12V nominal)
• Peak-to-peak ripple voltage immunity : 2V (at 12VDC)
• Detector start-up time : 60 s
• Power consumption : 10 to 20 mA (10 mA nominal)
• Mounting height : 1.8 to 3.0 m
• Detection speed: 0.1 to 4.0 m / s
• Alarm / sabotage relay characteristic : NC, 80 mA 30 VDC, Form A
• Fault relay characteristic : NC, 80 mA 30 VDC, Form A
• Alarm duration : 3s
• Operating temperature : -10 to + 55°C
• Relative humidity : 95% max. not condensing
• weight : 120 g
• Dimensions (H x W x D) : 126 x 63 x 50 mm
• IP / IK protection class : IP30 IK04
• Tear-off contact : On board
• VdS recognition : G 113071 (Class C)
• EN recognition : Safety degree 3 according to EN 50131-1
